SMOTION1500-E6D
SMotion1500 is a heavy-duty 6DOF motion platform with 1500 kg payload, built for system testing, simulation, and hardware integration. Its rigid structure and smooth control suit industrial and full-cabin setups.

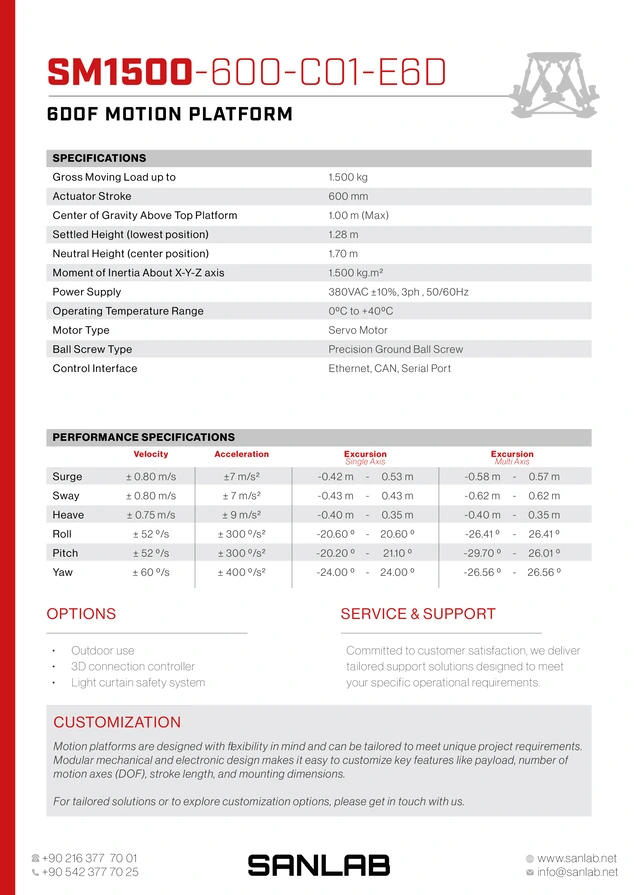

SM1500 MOTION PLATFORM
SMotion1500 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts a payload capacity of 1500 kilograms, making it a versatile solution for a range of industries.
- Dimensions: Length 290 cm x Width 300 cm x Height 210 cm
- Payload Capacity: 1500 kg
- Actuator Stroke:600 mm
- Moment of Inertia: 1500 kg·m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz
Performance Specifications
|
|
Velocity
|
Acceleration
|
|---|---|---|
|
Surge
|
± 0.80 m/s
|
± 7 m/s2
|
|
Sway
|
± 0.80 m/s
|
± 7 m/s2
|
|
Heave
|
± 0.75 m/s
|
± 9 m/s2
|
|
Roll
|
52°/s
|
± 300°/s²
|
|
Pitch
|
52°/s
|
± 300°/s²
|
|
Yaw
|
60°/s
|
± 400°/s²
|
Compatible With
Remote Control Weapon Systems
Camera Tracking Systems
Gimbal Systems
Radar Systems
Rotator Systems
Turret Systems
Vehicle Cabin/Body Systems
Aircraft Cabin Systems
Facts
6DOF (degrees of freedom)
6 Electro-Mechanical Actuators
1500 kg total payloads
600 mm actuator stroke
Applications
Component validation
Signal replication
Signal generation
Real time simulation table
Field data system testing simulator
Turret & RCW Test
FORM & FUNCTION
SMotion1500 delivers precise 6DOF motion in a reinforced platform, designed for high-mass testing and continuous use. Its durable build supports cabin mockups, industrial test rigs and integration labs.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM1500 OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion1500 Outdoor variant, which includes all the features of the standard SMotion1500 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -30°C to +60°C
- Storage Temperature Range: -20°C to +50°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion1500, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
