SMOTION1000-E6D
SMotion1000 is a powerful 6DOF motion platform with 1000 kg payload, built for vehicle simulation, testing, and system integration. Its stable motion and strong design suit high-load engineering setups.
SM1000 MOTION PLATFORM
SMotion1000 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts an impressive payload capacity of 1000 kilograms, making it a versatile solution for a range of industries.
- Dimensions: Length 230 cm x Width 200 cm x Height 140 cm
- Payload Capacity: 1000 kg
- Actuator Stroke: 300 mm
- Moment of Inertia:660 kg·m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

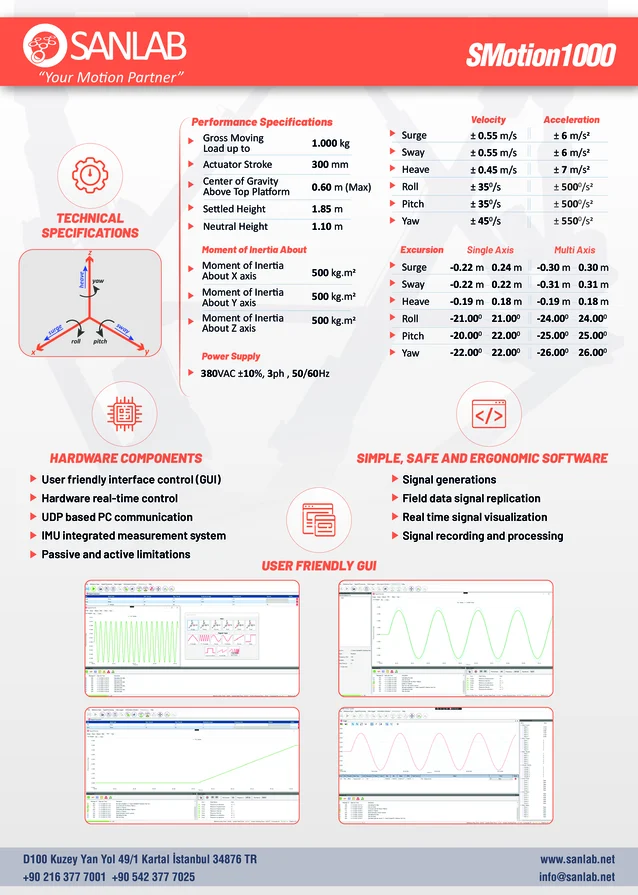

Performance Specifications
|
|
Velocity
|
Acceleration
|
|---|---|---|
|
Surge
|
± 0.55 m/s
|
± 6 m/s2
|
|
Sway
|
± 0.55 m/s
|
± 6 m/s2
|
|
Heave
|
± 0.45 m/s
|
± 7 m/s2
|
|
Roll
|
35°/s
|
± 500°/s²
|
|
Pitch
|
35°/s
|
± 500°/s²
|
|
Yaw
|
45°/s
|
± 550°/s²
|
Compatible With
Remote Control Weapon Systems
Camera Tracking Systems
Gimbal Systems
Radar Systems
Rotator Systems
Turret Systems
Vehicle Cabin/Body Systems
Aircraft Cabin Systems
Facts
6DOF (degrees of freedom)
6 Electro-Mechanical Actuators
1000 kg total payloads
300 mm actuator stroke
Applications
Component validation
Signal replication
Signal generation
Real time simulation table
Field data system testing simulator
Turret & RCW Test
FORM & FUNCTION
SMotion1000 delivers precise 6DOF motion in a reinforced structure, designed for heavy-duty simulations and validation tasks. Its robust build supports vehicle cabins, industrial rigs, and test benches.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM1000 OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion1000 Outdoor variant, which includes all the features of the standard SMotion1000 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -30°C to +60°C
- Storage Temperature Range: -20°C to +50°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion1000, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
