SPOSITIONER200-E2D
SPositioner offers precise 2DOF positioning with advanced azimuth and elevation control, robust design, and high payload capacity, making it ideal for satellite tracking, radar testing, and industrial measurement applications.

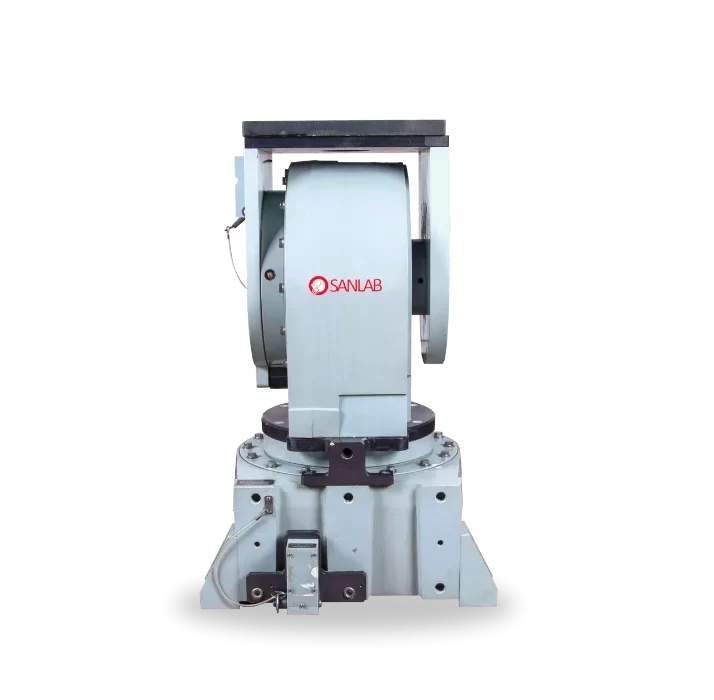

SP200 EL/AZ POSITIONER
SP200 elevation over azimuth positioner delivers accurate 2DOF positioning with robust design and stable performance for satellite tracking, radar testing and industrial applications.
- Dimensions: Length 120 cm x Width 100 cm x Height 80 cm
- Payload Capacity: 200 kg
- P Class 66 protection class
- Accuracy: 0.05°
- Power Supply: 400VAC ±10%, 3ph, 50/60Hz

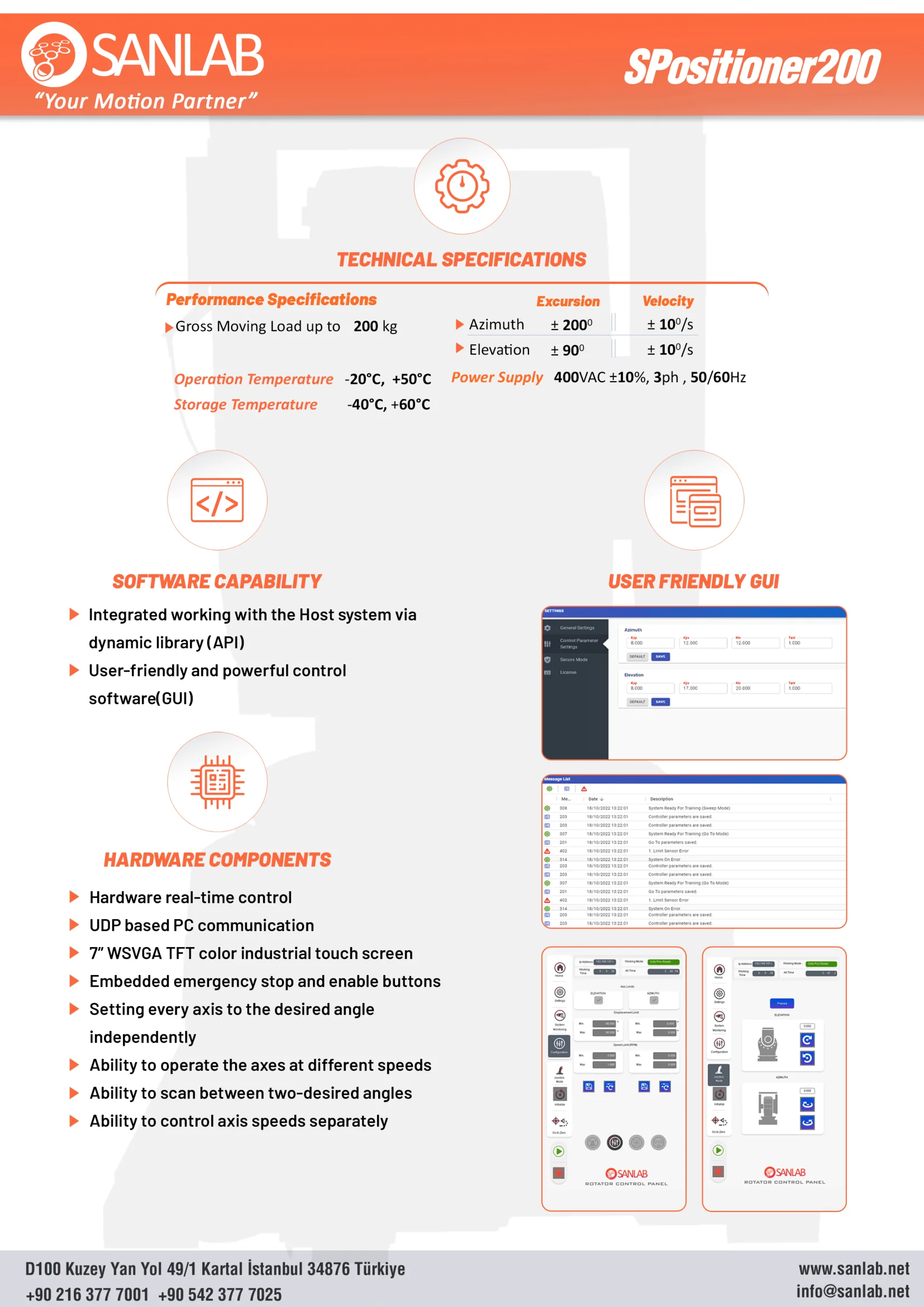

Performance Specifications
|
|
Excursion
|
Velocity
|
|---|---|---|
|
Azimuth
|
± 200°
|
± 10°/s
|
|
Elevation
|
± 90°
|
± 10°/s
|
Applications
Satellite Scanning
Prototype Tests
Radar Performance Tests
Hardware Components
7” Industrial Touch Screen
Emergency Stop & Enable Buttons
Angle Scanning Between 2 Positions
Compatible With
Radar Systems
Satellite Systems
FORM & FUNCTION
Elevation over azimuth positioner delivers precise two-axis motion with advanced control algorithms. It ensures stable performance, user-friendly operation, and reliable positioning for satellite tracking, radar testing, and industrial applications.
Core Capabilities
2 Degrees of Freedom
Provides accurate roll and pitch stabilization.
Independent Axis Positioning
Individual axis position adjustment
Host System Integration (API)
Flexible external system integration.
User-Friendly Control Software (GUI)
Simple, intuitive operator interface
UDP Based PC Communication
Ensures efficient data transmission
Real-Time Hardware Control
Instant and precise motion response.
SP400 EL/AZ POSITIONER
SP400 elevation over azimuth positioner delivers advanced 2DOF motion control, ensuring smooth and reliable positioning for radar, satellite, and industrial testing applications. Designed for high-precision performance, it is ideal for demanding defense, aerospace and industrial sectors.
- Payload Capacity: 400 kg
- Same Performance Specifications:Shares identical motion features with SP200, including precise azimuth and elevation motion, real-time control, and user-friendly interface.
