SMOTION500-E3D

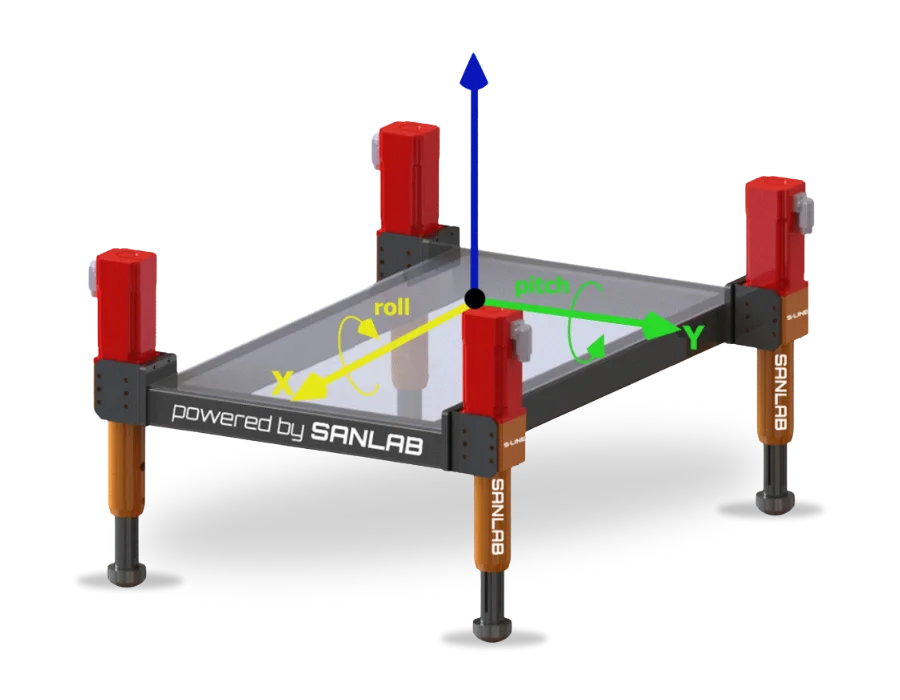

SMotion500 – E3D is a 3DOF motion platform for 500 kg payloads, built for pitch, roll, and heave simulation. Its modular frame and fast response suit vehicle simulators, military systems, and teleoperation setups.
SM500 MOTION PLATFORM
SMotion500 – E3D is a 3DOF motion platform for 500 kg payloads, built for pitch, roll, and heave simulation. Its modular frame and fast response suit vehicle simulators, military systems, and teleoperation setups.
- Dynamic Stroke: 76.2 mm, Static Stroke: 86.0 mm
- Gross Payload: 500 Kg
- Signle Actuator Payload: 125 kg
- 3DOF (Pitch, Roll, Heave)
- Power Supply: 220V, Frequency Range: 0–100 Hz

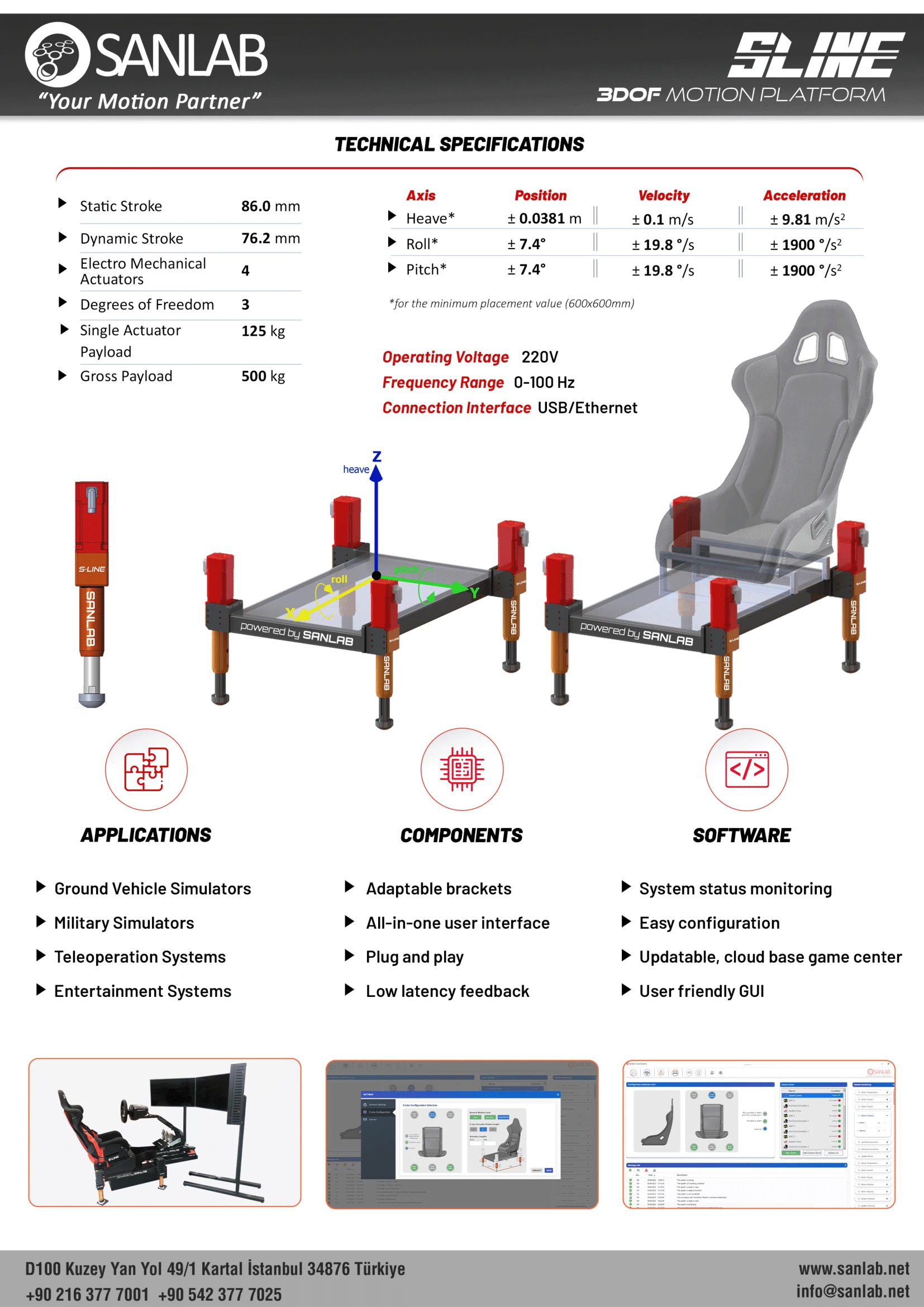

Performance Specifications
|
|
Position
|
Velocity
|
Acceleration
|
|---|---|---|---|
|
Heave
|
± 0.0381 m
|
± 0.1 m/s
|
± 9.81 m/s²
|
|
Roll
|
± 7.4°
|
± 19.8°/s²
|
± 1900°/s²
|
|
Pitch
|
± 7.4°
|
± 19.8°/s²
|
± 1900°/s²
|
Applications
Ground Vehicle Simulators
Military Simulators
Teleoperation Systems
Entertaiment Systems
Components
Adaptable Brackets
All-in-one User Interface
Plug and Play
Low Latency Feedback
FORM & FUNCTION
SMotion500 – E3D is a compact 3DOF motion platform that simulates pitch, roll, and heave with high responsiveness. Its encoder-based feedback and modular design support test benches, cabin mockups, and integrated simulator setups.
Core Capabilities
3 Degrees of Freedom
Pitch, roll, and heave motion.
Electro-Mechanical Actuators
Synchronized linear movement.
Reliable Connectivity
USB and Ethernet interfaces for easy PC integration.
User-Friendly GUI
Simplified control via intuitive interface.
500 kg Payload Handling
High-load performance up to 500 kg
Real-Time Control
Facilitates immediate response and adjustment.
