SMOTION1000-E3D
SMotion1000 is a 3DOF motion platform for 1000 kg payloads, built for pitch, roll, and heave simulation. Its robust frame and smooth motion suit testing, validation and dynamic setups.
SM1000 MOTION PLATFORM

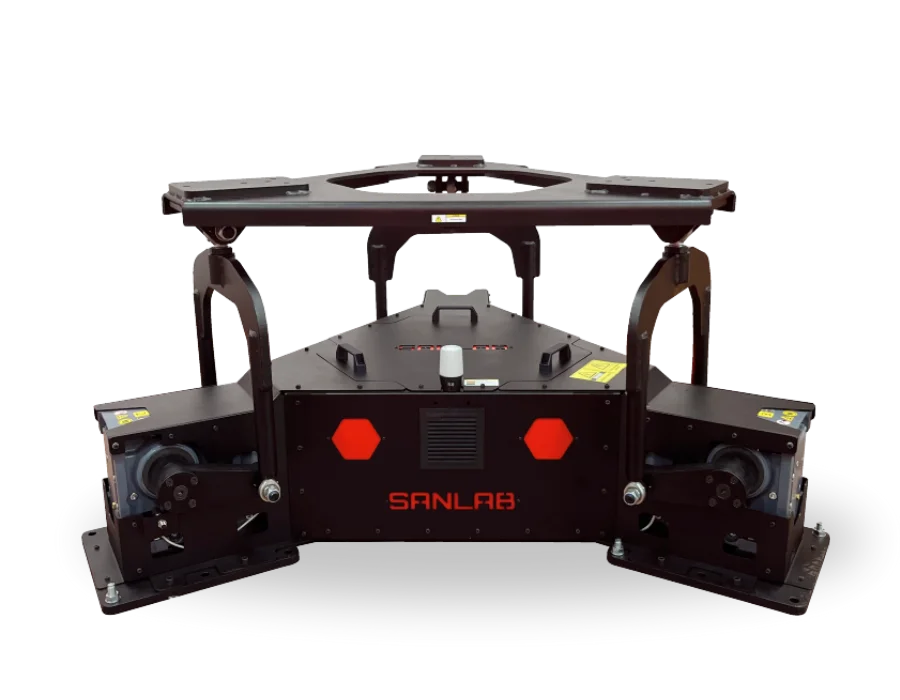

SMotion1000 – E3D is a precision-engineered 3DOF motion platform designed to simulate pitch, roll and heave movements with high accuracy and responsiveness. With a 1000 kg payload capacity and rugged mechanical design, it offers a reliable solution for testing, validation, and simulation in demanding industrial environments.

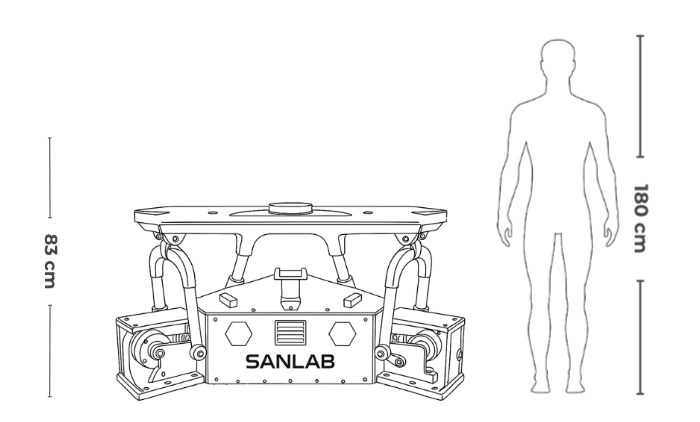

- Dimensions: L1.79×W1.56×H0 .83m
- Payload Capacity: 1000 kg
- Moment of Inertia: 420 kg·m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

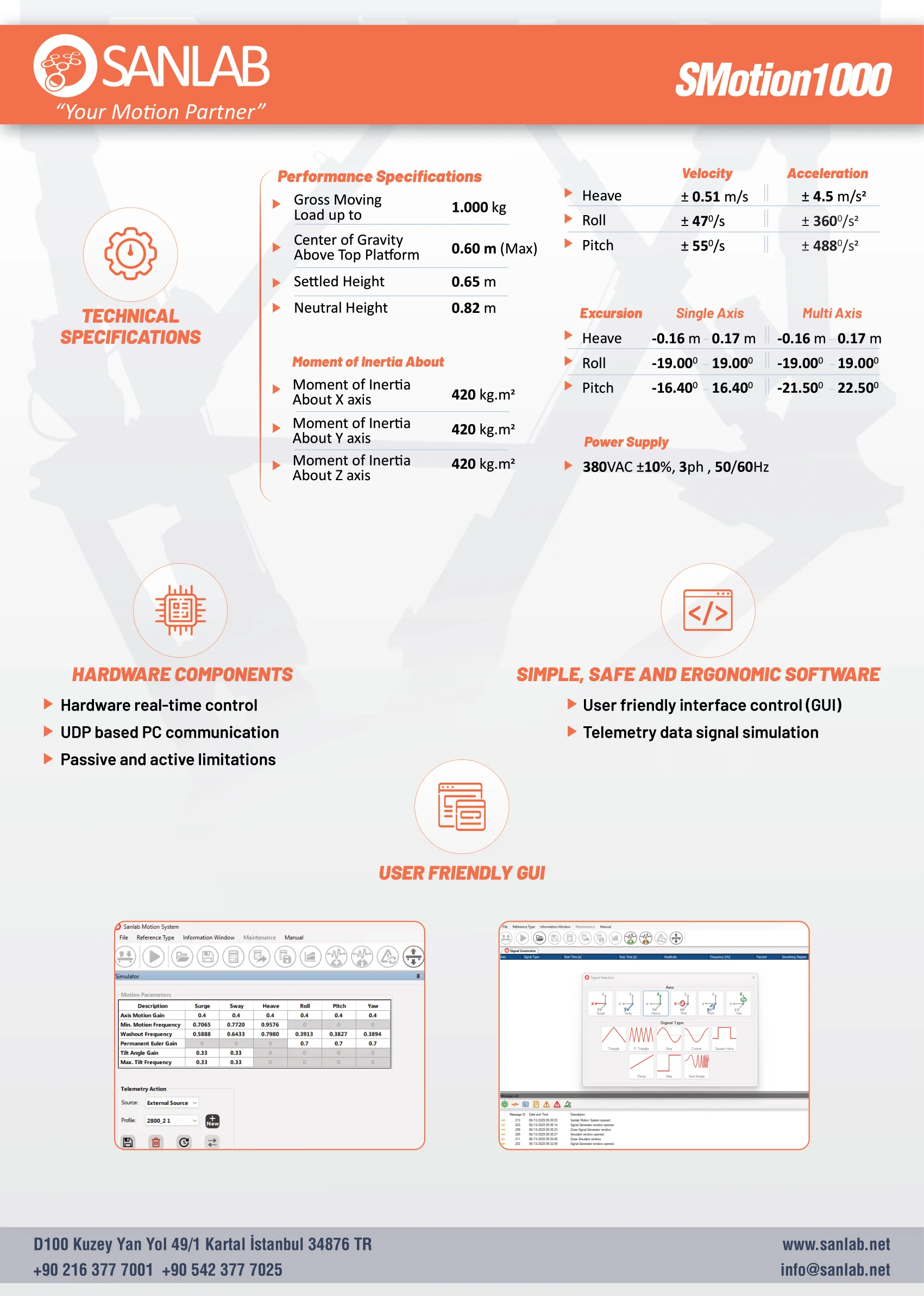

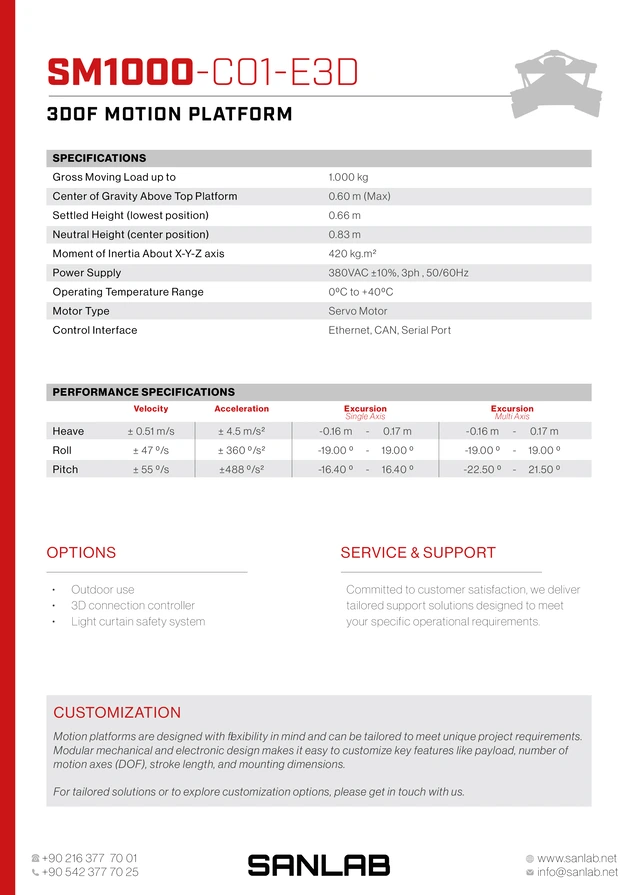

Performance Specifications
Velocity |
Acceleration |
Excursion (Single Axis) |
Excursion (Multi Axis) | |
|---|---|---|---|---|
Heave
|
± 0.51 m/s
|
± 4.5 m/s²
|
-0.16m | 0.17m
|
-0.16m | 0.17m
|
Roll
|
47°/s
|
± 360°/s²
|
-19.00° | 19.00°
|
-19.00° | 19.00°
|
Pitch
|
55°/s
|
± 488°/s²
|
-16.40° | 16.40°
|
-22.50° | 21.50°
|
Applications
Camera Tracking Systems Testing
Electro-Optical Systems Testing
Radar Testing
Rotator Testing
Antenna Testing
Turret Systems Testing
.
Stabilization Testing
Driving Simulator
Flight Simulator
Mockup Simulator
Defense & Tactical Training
Commercial Driving Training
FORM & FUNCTION
SMotion1000 – E3D generates precise heave, roll, and pitch motion using three servo-driven actuators. With a 1000 kg payload capacity, the system is controlled via user interface and protected by safety sensors.
Core Capabilities
3 Degrees of Freedom
Pitch, roll, and heave motion.
Electro-Mechanical Actuators
Synchronized linear movement.
Telemetry Data Signal Simulation
Realistic motion via telemetry signals.
User-Friendly GUI
Simplified control via intuitive interface.
1000 kg Payload Handling
Stable under heavy loads.
Real-Time Control
Facilitates immediate response and adjustment.
