SMOTION150-E2D
Stabilizer150 offers accurate 2DOF stabilization with advanced motion control, durable build, and high payload capacity for demanding defense, aerospace, and industrial uses.

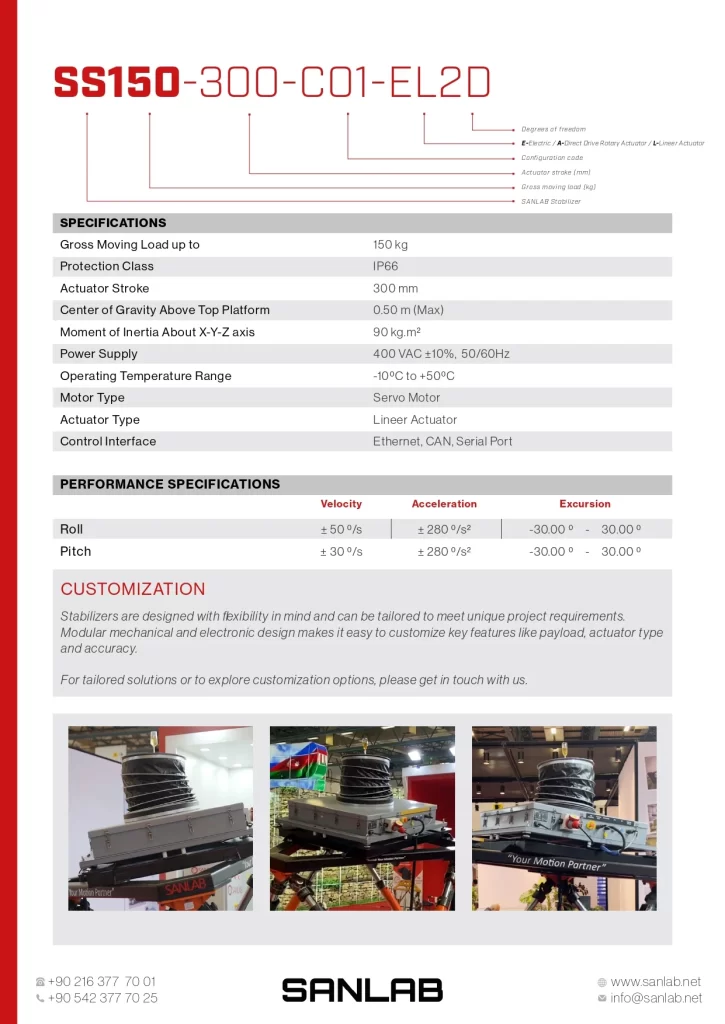

SM150 STABILIZED PLATFORM
Stabilizer150 – E2D is a precision 2DOF platform delivering accurate roll and pitch control with high responsiveness. Its 150 kg payload, 0.05° accuracy, and rugged design ensure reliable stabilization for defense, aerospace and industrial applications.
- Dimensions: Length 120 cm x Width 100 cm x Height 80 cm
- Payload Capacity: 150 kg
- Actuator Stroke: 300 mm
- Moment of Inertia: 90 kg·m² (X, Y, Z axes)
- Accuracy: 0.05°
Performance Specifications
|
|
Excursion
|
Velocity
|
Acceleration
|
|---|---|---|---|
|
Roll
|
± 30°
|
± 50°/s
|
± 280°/s²
|
|
Pitch
|
± 30°
|
± 30°/s
|
± 280°/s²
|

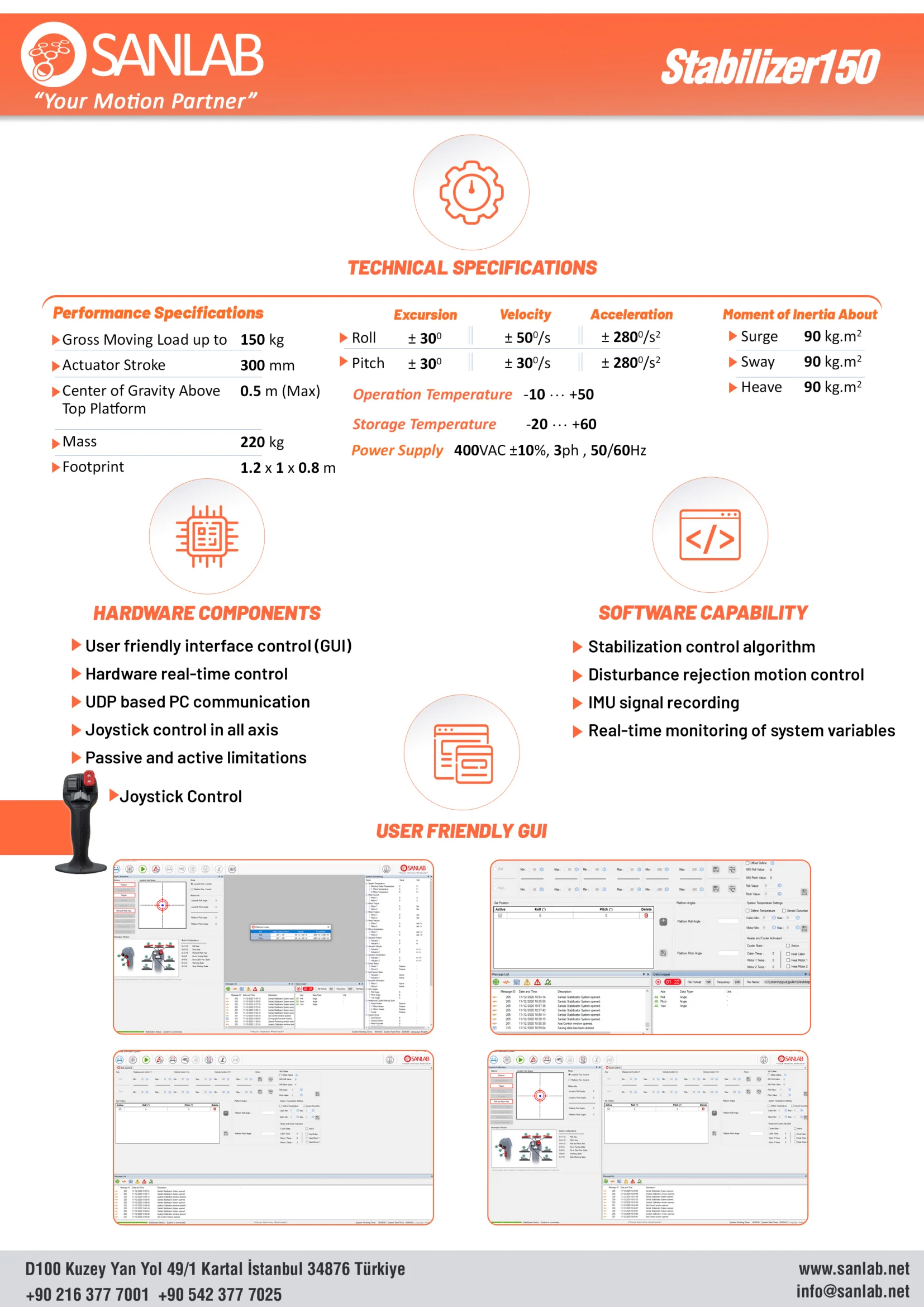

Technical Specifications
Power Supply: 400VAC± 10%, 3ph, 50/60Hz
Gross Moving Load up to: 150 kg
Actuator Stroke: 300mm
Height: 0.5m (Max)
Mass: 220 kg
Footprint: 1.2 x 1 x 0.8 m
Operation Temperature: -10°...+50°
Storage Temperature: -20°...+60°
Compatible With
Electro-optic Systems
Remote Control Weapon Systems
Radar Systems
Component validation
UAVs & Drones
FORM & FUNCTION
SMOTION150-E2D delivers precise roll and pitch motion with servo-driven actuators. It ensures stable performance with 150 kg payload, user-friendly control, and safe operation for various testing needs.
Core Capabilities
2 Degrees of Freedom
Provides accurate roll and pitch stabilization.
Joystick Control
Delivers precise and stable motion control.
Stabilization Control Algorithm
Optimizes motion for precise and stable control.
User-Friendly GUI
Simplified control via intuitive interface.
UDP Based PC Communication
Ensures efficient data transmission.
Real-Time Control
Facilitates immediate response and adjustment.
APPLICATIONS
- IMU Integrated Stabilization
- Roll and Pitch Motion Realization
- Prototype Test
- Real -time Data Logging
- Component Validation
- Vibration Isolation
