SM25000

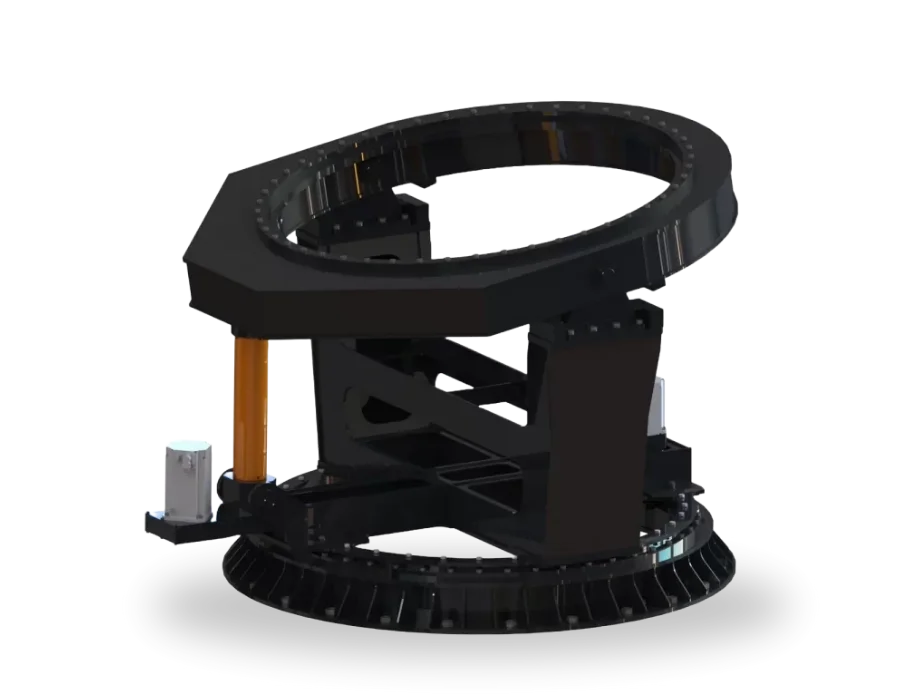

STABILIZED PLATFORM
SM25000 Stabilized Platform delivers advanced 2DOF motion control with rotational and tilting movement for tank training, heavy equipment testing, and industrial applications. With 25-ton payload capacity, real field data playback, and integrated control panel, it ensures high-precision simulation under demanding conditions.
- Payload Capacity: Up to 25 tons
- Real Field Data Playback
- Environmental Resistance: -20°C to +50°C

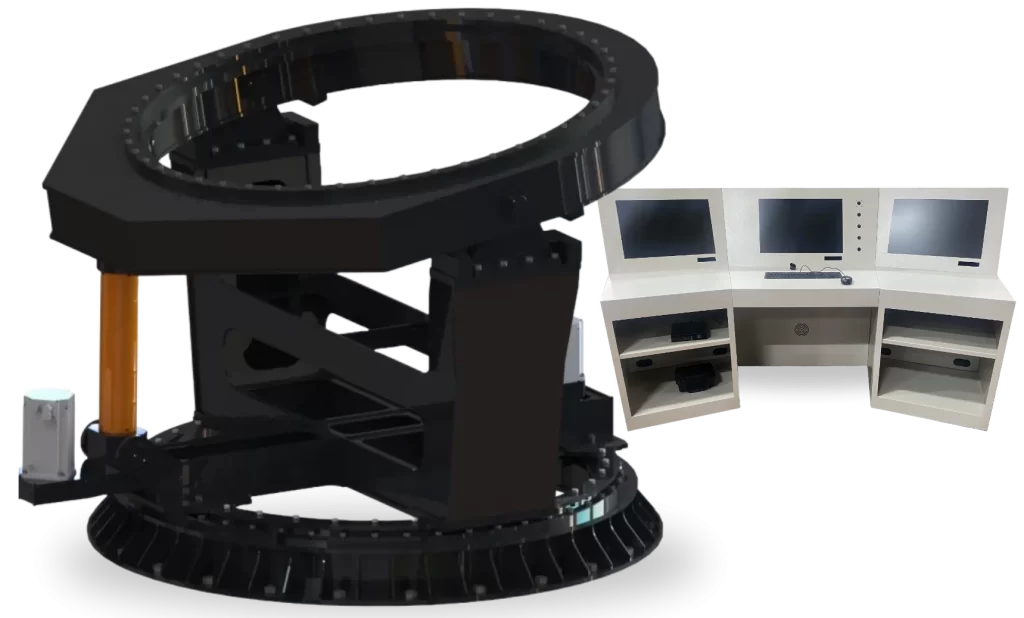

- Integrated Control Panel
Performance Specifications
|
|
Motion Range
|
Velocity
|
Acceleration
|
|---|---|---|---|
|
Pitch
|
± 7.5°
|
± 5°/s
|
± 20°/s²
|
|
Yaw
|
± 20°
|
± 5°/s
|
± 2D0°/s²
|
|
Motion Axis
|
Value
|
|---|---|
|
Total Moving Load
|
25,000 kg
|
|
Moment of Inertia Ixx
|
27,000 kg·m²
|
|
Moment of Inertia Iyy
|
52,000 kg·m²
|
|
Moment of Inertia Izz
|
52,000 kg·m²
|
|
X-Y Axis Center of Gravity Maximum Offset
|
200 mm
|
FORM & FUNCTION
SM25000 Stabilized Platform delivers precise yaw and pitch motion with servo-driven actuators. Supporting 25 tons payload, it ensures smooth tank training and equipment simulation with integrated control and safety features.
Core Capabilities
2 Degrees of Freedom
Precise yaw and pitch motion.
High Accuracy & Realism
Accurate movement and simulation fidelity
Real Field Data Playback
Replays real-world training data.
Authentic Field Scenarios
Simulates realistic operational conditions.
Immersive Visual & Audio Experience
Enhanced visual and audio immersion.
High Security & Safety
Integrated safety and protection systems.
APPLICATIONS

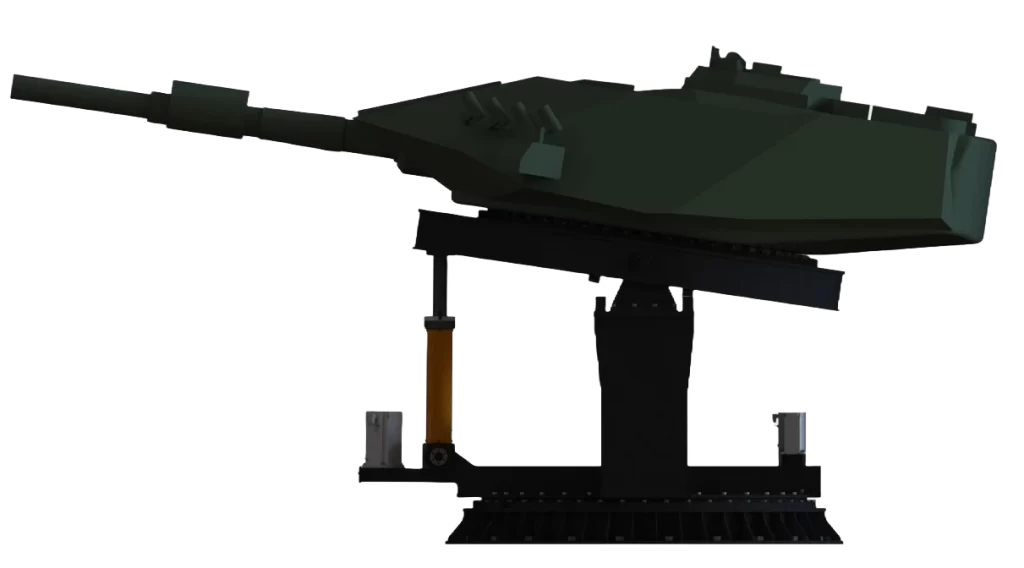

- Compatible with M60T, Leopard 2A4, Altay tanks
- Adaptable to various tank models
- Tank Test & Training Simulator
- Command & Control Training Support
- Prototype Testing and Evaluation
- Multi-Personnel Training Scenarios
- Authentic Field Scenario Replication
