SMOTION250-E2D
SMotion250 – E2D is a 2DOF motion platform for 250 kg payloads, built for pitch and roll simulation. Its modular frame and fast response suit vehicle simulators, military systems, and teleoperation setups.
SM250 MOTION PLATFORM
SMotion250 – E2D is a 2DOF motion platform for 250 kg payloads, built for pitch and roll simulation. Its modular frame and fast response suit vehicle simulators, military systems, and teleoperation setups.
- Dynamic Stroke: 76.2 mm, Static Stroke: 86.0 mm
- Payload Capacity: 250 kg
- Signle Actuator Payload: 125 kg
- 2DOF (Pitch, Roll )
- Power Supply: 220V, Frequency Range: 0–100 Hz

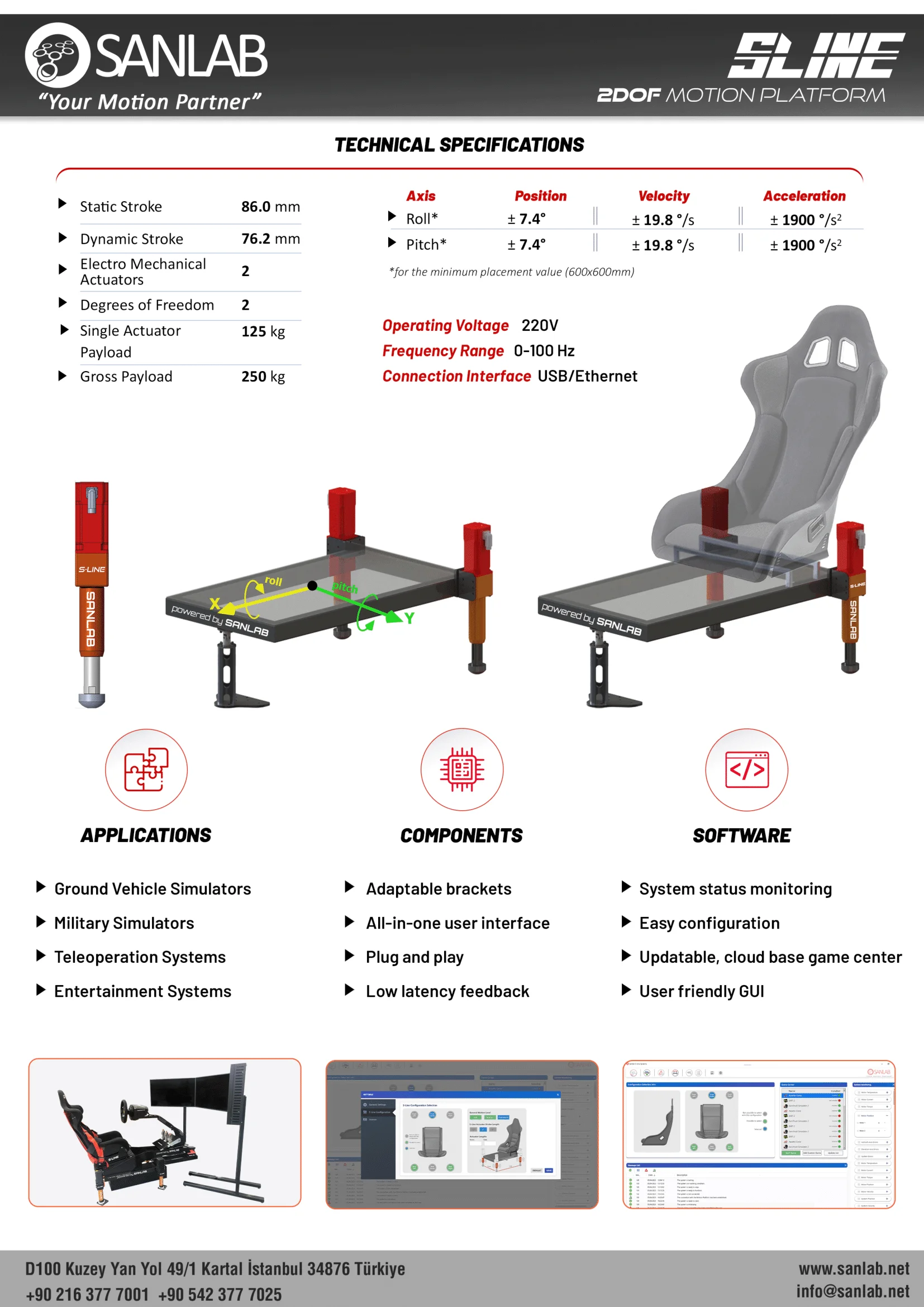

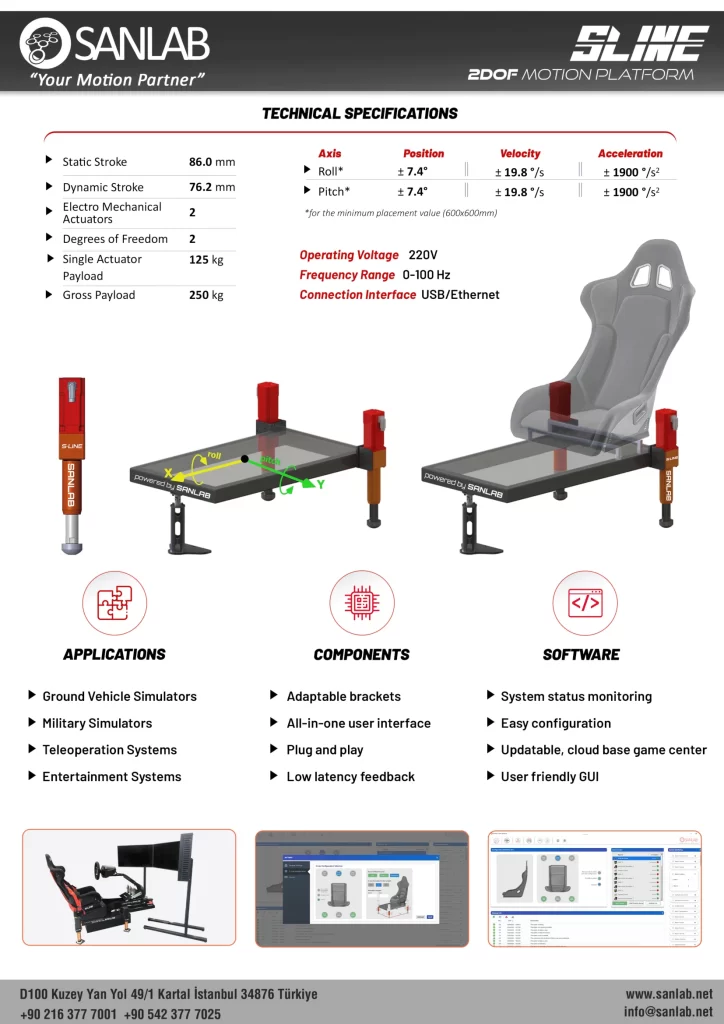

Performance Specifications
|
|
Position
|
Velocity
|
Acceleration
|
|---|---|---|---|
|
Roll
|
± 7.4°
|
± 19.8°/s
|
± 1900°/s²
|
|
Pitch
|
± 7.4°
|
± 19.8°/s
|
± 1900°/s²
|
Applications
Ground Vehicle Simulators
Military Simulators
Teleoperation Systems
Entertaiment Systems
Components
Adaptable Brackets
All-in-one User Interface
Plug and Play
Low Latency Feedback
FORM & FUNCTION

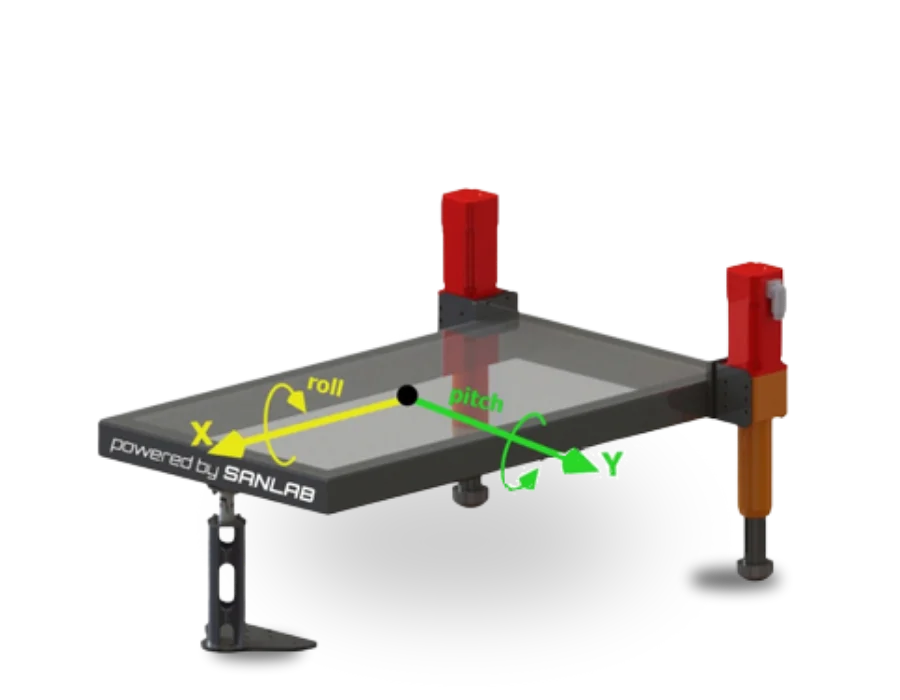

SMotion250 – E2D is a compact 2DOF motion platform that simulates pitch and roll with high responsiveness. Its encoder-based feedback and modular design support test benches, cabin mockups, and integrated simulator setups.
Core Capabilities
2 Degrees of Freedom
Provides accurate roll and pitch stabilization.
Cloud-Based Game Center
Cloud access and updates.
Reliable Connectivity
USB and Ethernet interfaces for easy PC integration.
User-Friendly GUI
Simplified control via intuitive interface.
Payload Handling
High-load performance up to 250 kg
Real-Time Control
Facilitates immediate response and adjustment.
