SMOTION1800-E6D
SMotion1800 is a high-load 6DOF motion platform with 1800 kg payload, built for simulation, system testing, and integration. Its robust design and smooth control suit defense, research, and industrial setups.
SM1800 MOTION PLATFORM

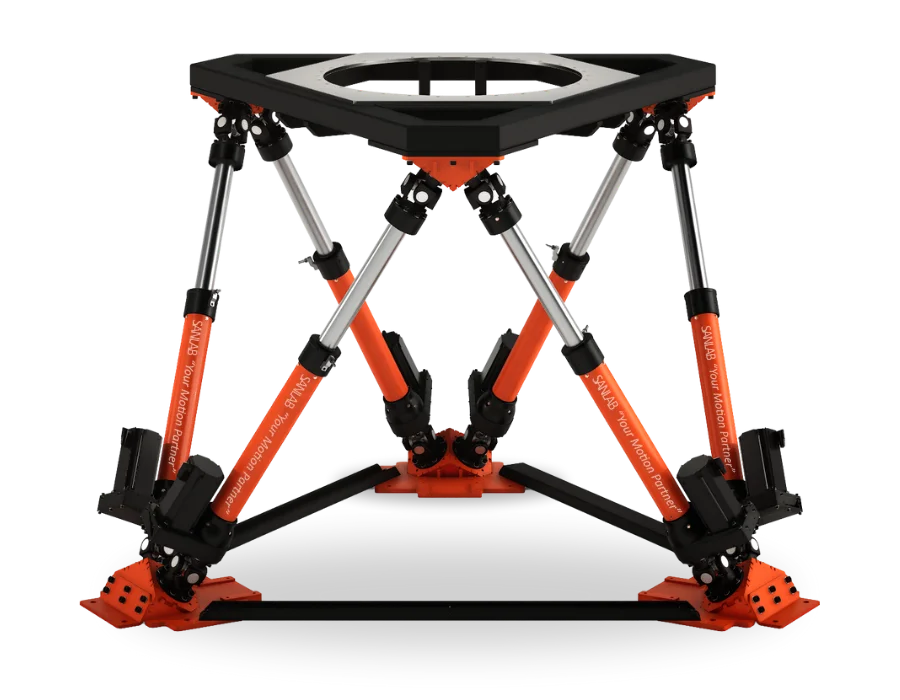

SMotion1800 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed for precise and responsive movement across complex simulation scenarios. With a payload capacity of 1800 kilograms, it provides a robust and flexible solution for demanding industrial and defense applications.
- Dimensions: Length 290 cm x Width 300 cm x Height 210 cm
- Payload Capacity: 1800 kg
- Actuator Stroke: 600 mm
- Moment of Inertia: 2000 kg·m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

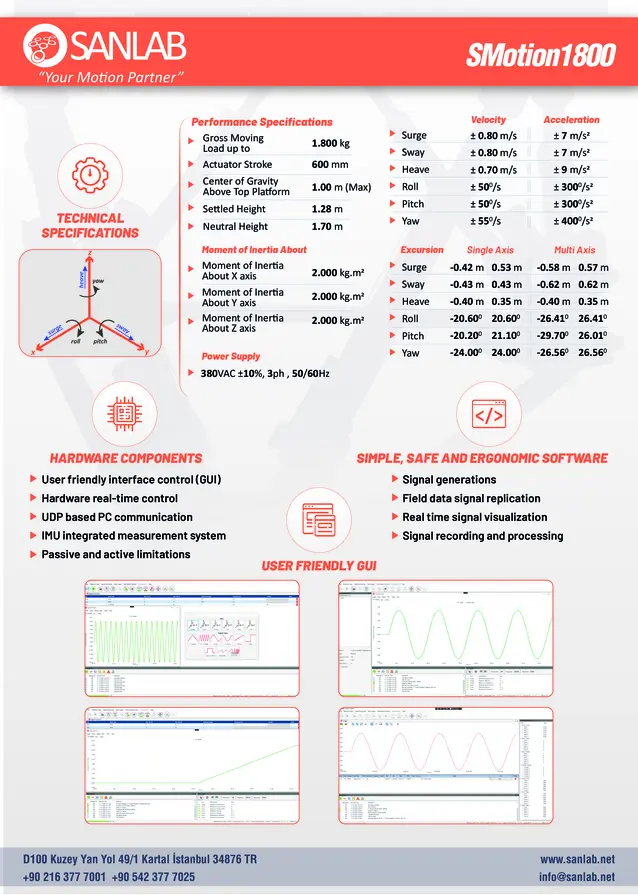

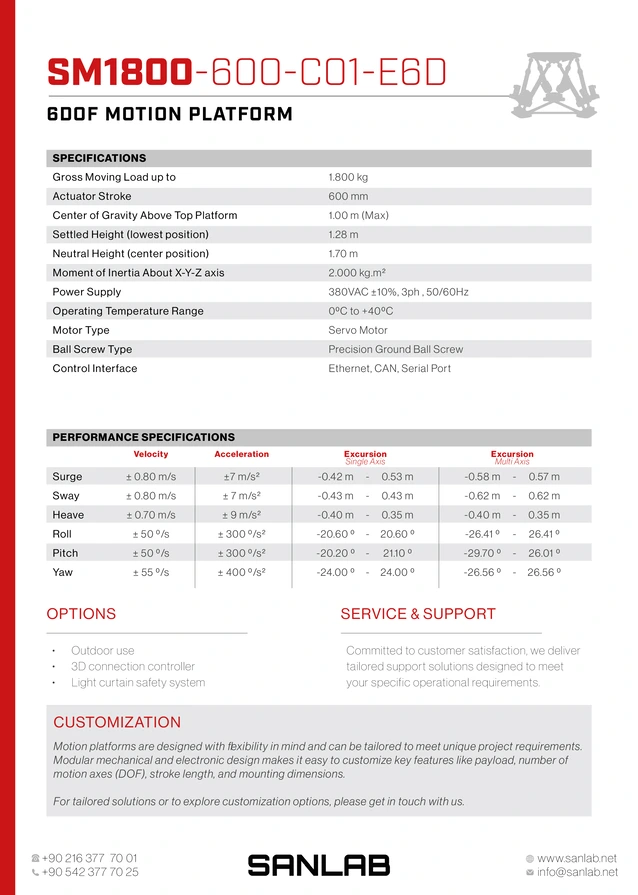

Performance Specifications
|
|
Velocity
|
Acceleration
|
|---|---|---|
|
Surge
|
± 0.80 m/s
|
± 7 m/s2
|
|
Sway
|
± 0.80 m/s
|
± 7 m/s2
|
|
Heave
|
± 0.70 m/s
|
± 9 m/s2
|
|
Roll
|
50°/s
|
± 300°/s²
|
|
Pitch
|
50°/s
|
± 300°/s²
|
|
Yaw
|
55°/s
|
± 400°/s²
|
Compatible With
Remote Control Weapon Systems
Camera Tracking Systems
Gimbal Systems
Radar Systems
Rotator Systems
Turret Systems
Vehicle Cabin/Body Systems
Aircraft Cabin Systems
Facts
6DOF (degrees of freedom)
6 Electro-Mechanical Actuators
1800 kg total payloads
600 mm actuator stroke
Applications
Turret & RCW Test
Component validation
Signal replication
Signal generation
Real time simulation table
Field data system testing simulator
FORM & FUNCTION
SMotion1800 delivers accurate 6DOF motion through a reinforced frame, built for continuous operation under heavy loads. Ideal for large test systems, simulation cabins and hardware labs.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM1800 OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion1800 Outdoor variant, which includes all the features of the standard SMotion1800 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -30°C to +60°C
- Storage Temperature Range: -20°C to +50°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion1800, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
