SMotion800 is a high-capacity 6DOF motion platform with 800 kg payload, built for advanced simulation, testing, and integrated system setups. Its precise control and durable frame suit industrial and vehicle-based applications.

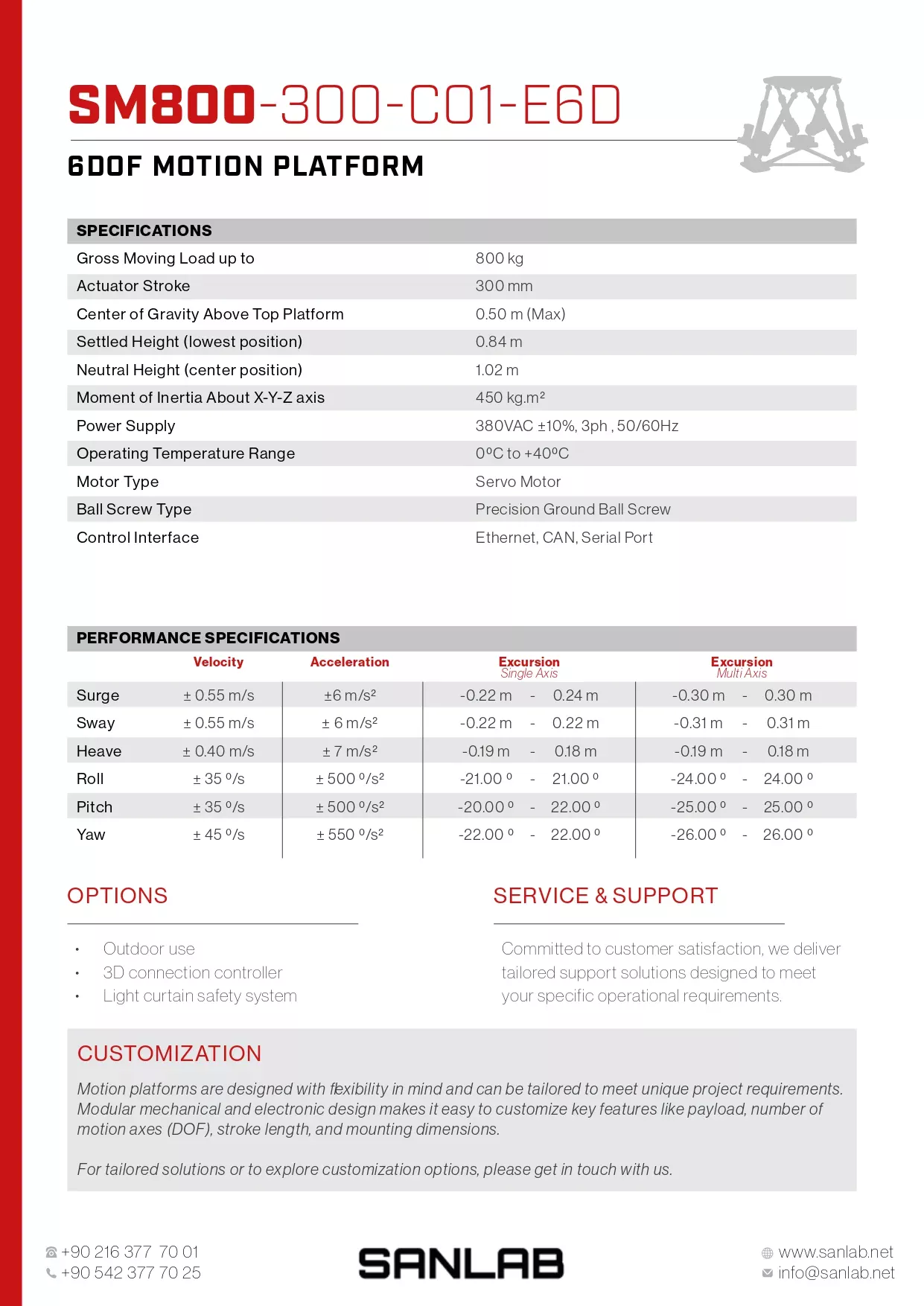

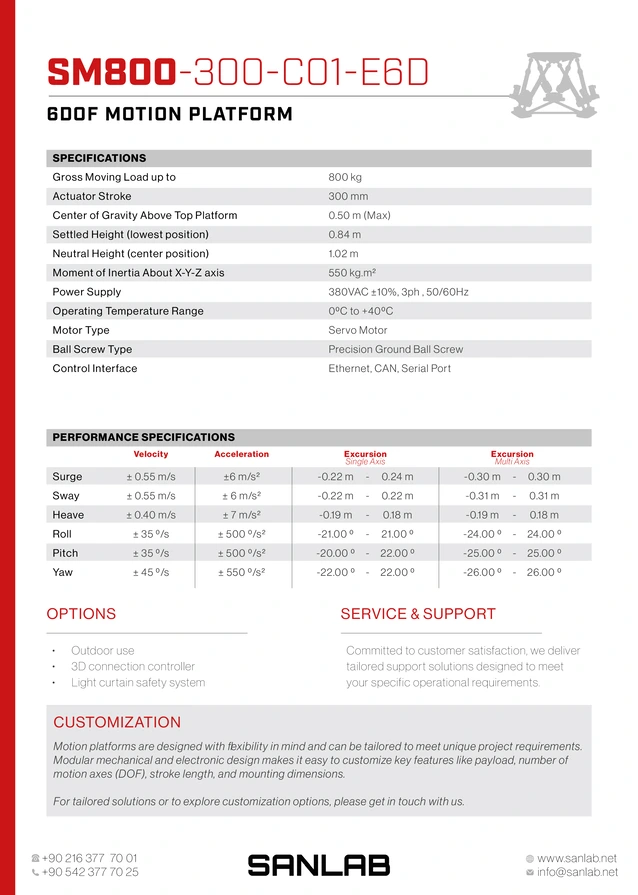

SM800-300-C01-E6D
MOTION PLATFORM

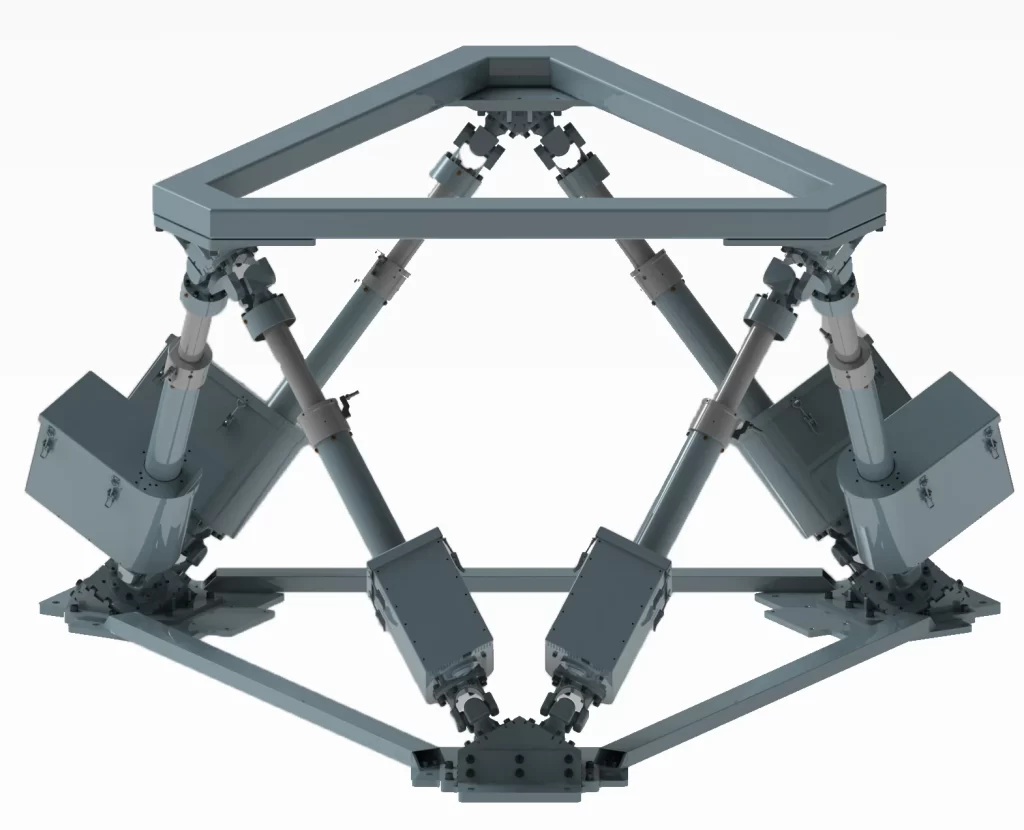

SMotion800 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts an impressive payload capacity of 800 kilograms, making it a versatile solution for a range of industries

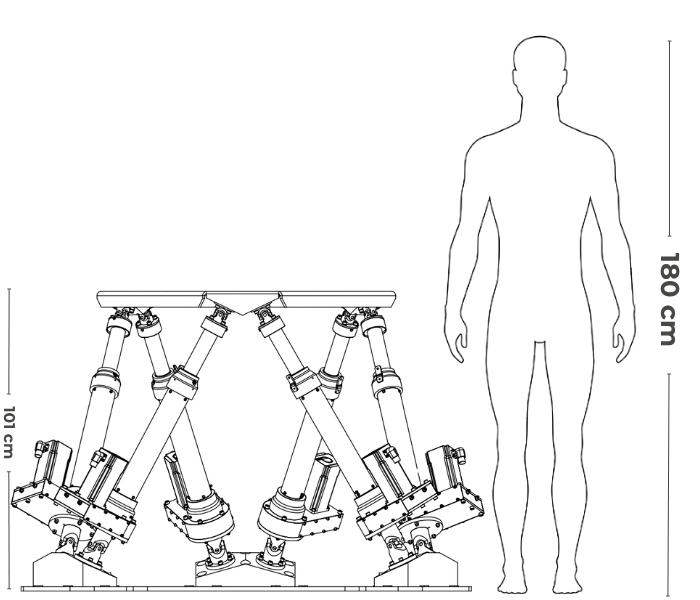

- Dimension: Length 160 cm x Width 140 cm x Height 102 cm
- Payload Capacity: 800 kg
- Actuator Stroke: 300 mm
- Moment of Inertia: 550 kg.m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

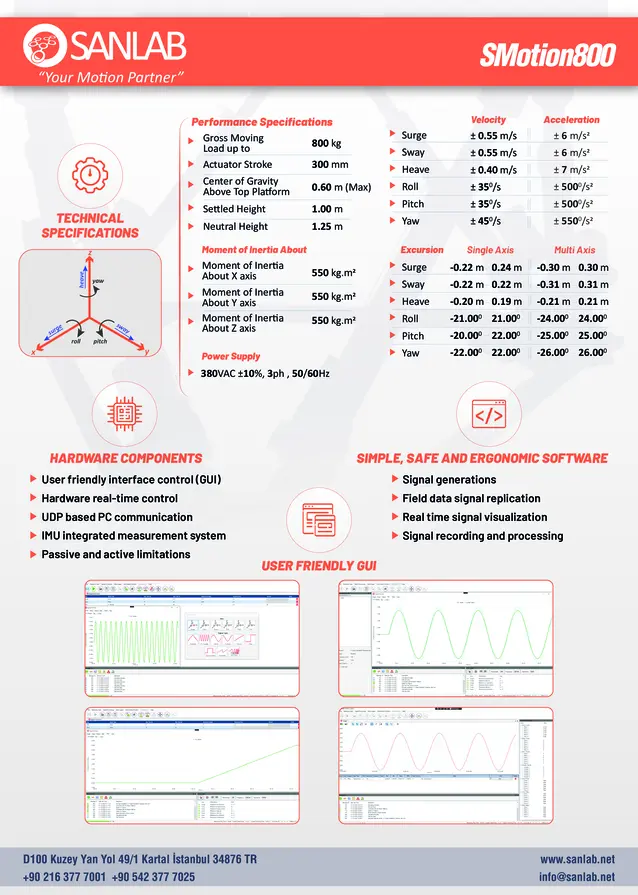

Performance Specifications
Velocity |
Acceleration |
Excursion (Single Axis) |
Excursion (Multi Axis) | |
|---|---|---|---|---|
Surge
|
± 0.55 m/s
|
± 6 m/s2
|
-0.22m | 0.24m
|
-0.30m | 0.30m
|
Sway
|
± 0.55 m/s
|
± 6 m/s2
|
-0.22m | 0.22m
|
-0.31m | 0.31m
|
Heave
|
± 0.40 m/s
|
± 7 m/s2
|
-0.19m | 0.18m
|
-0.19m | 0.18m
|
Roll
|
35°/s
|
± 500°/s²
|
-21.00° | 21.00°
|
-24.00° | 24.00°
|
Pitch
|
35°/s
|
± 500°/s²
|
-20.00° | 22.00°
|
-25.00° | 25.00
|
Yaw
|
45°/s
|
± 550°/s²
|
-22.00° | 22.00°
|
-26.00° | 26.00°
|
Applications
Remote Control Weapon Systems Testing
Camera Tracking Systems Testing
Electro-Optical Systems Testing
Radar Testing
Rotator Testing
Antenna Testing
.
Turret Systems Testing
Vehicle Simulator
Stabilization Testing
Driving Simulator
Flight Simulator
Mockup Simulator

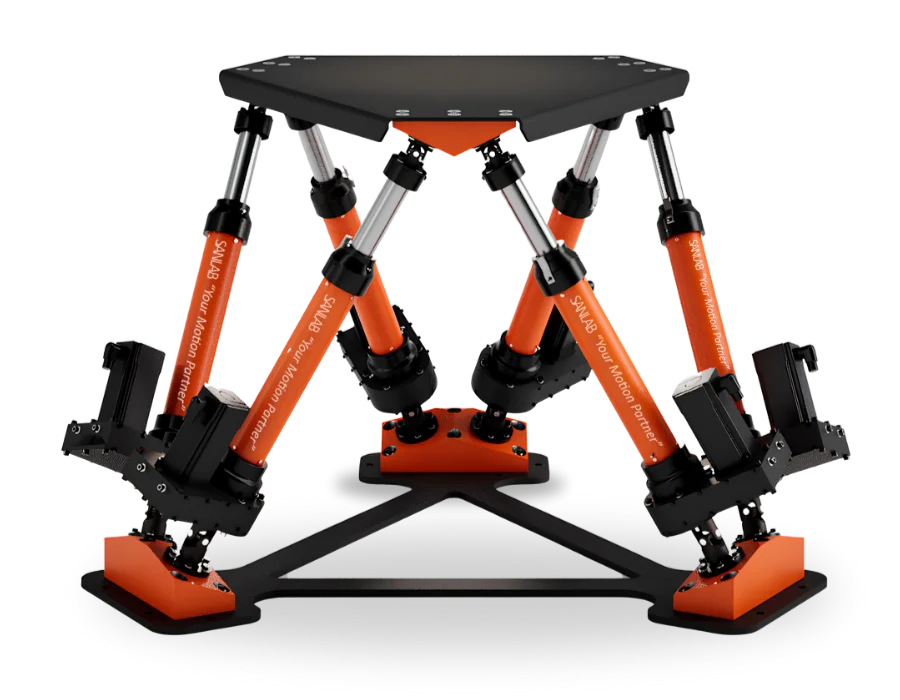

FORM & FUNCTION
SMotion800 delivers stable 6DOF motion through a reinforced structure, optimized for heavy payloads and continuous operation. Its design supports demanding test rigs, simulation labs, and integrated systems.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM800-300-C01-E6DO
OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion800 Outdoor variant, which includes all the features of the standard SMotion800 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -20°C to +50°C
- Storage Temperature Range: -30°C to +60°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion800, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
