SM500-300-C01-E6D
SMotion500 is a robust 6DOF motion platform with 500 kg payload, built for simulation, hardware testing, and industrial use. Its precise motion and solid design suit engineering rigs and full-scale setups.
SM500-300-C01-E6D
MOTION PLATFORM

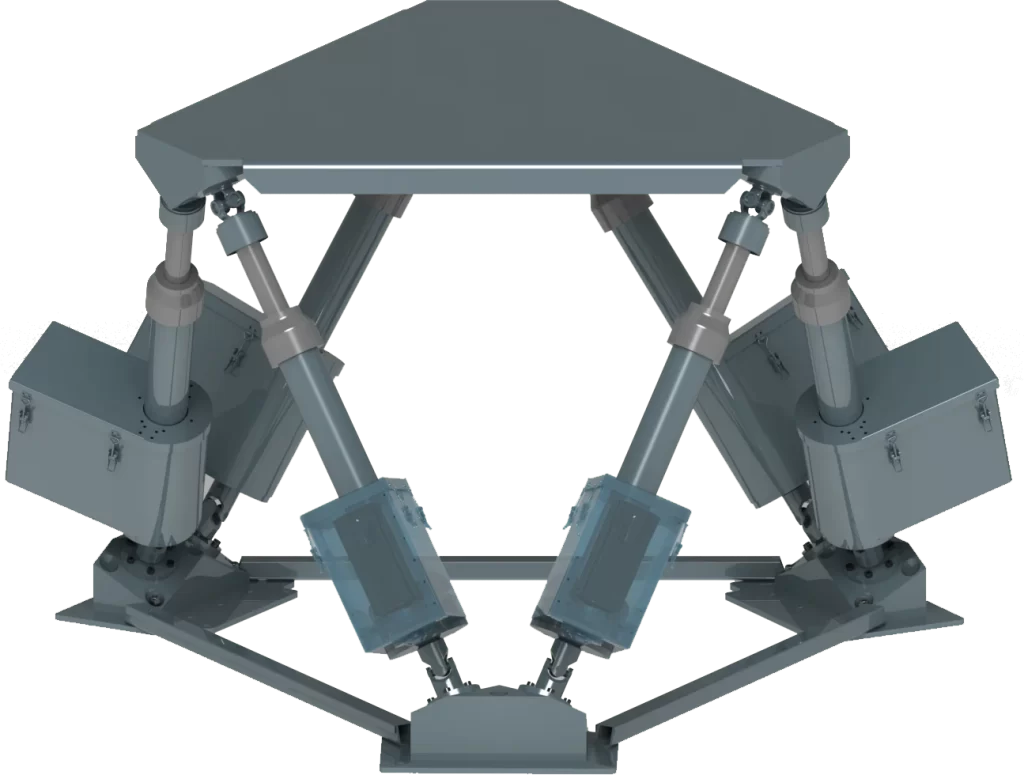

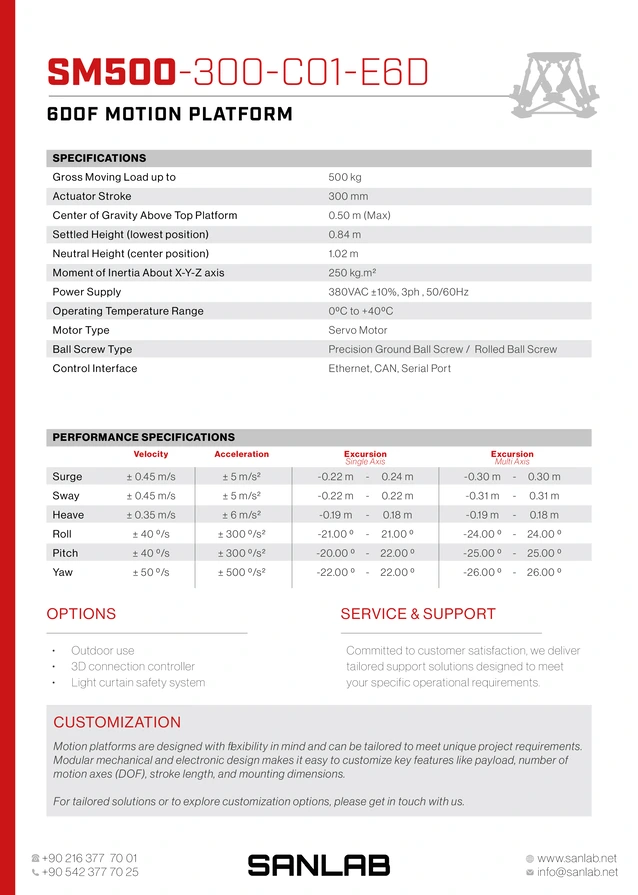

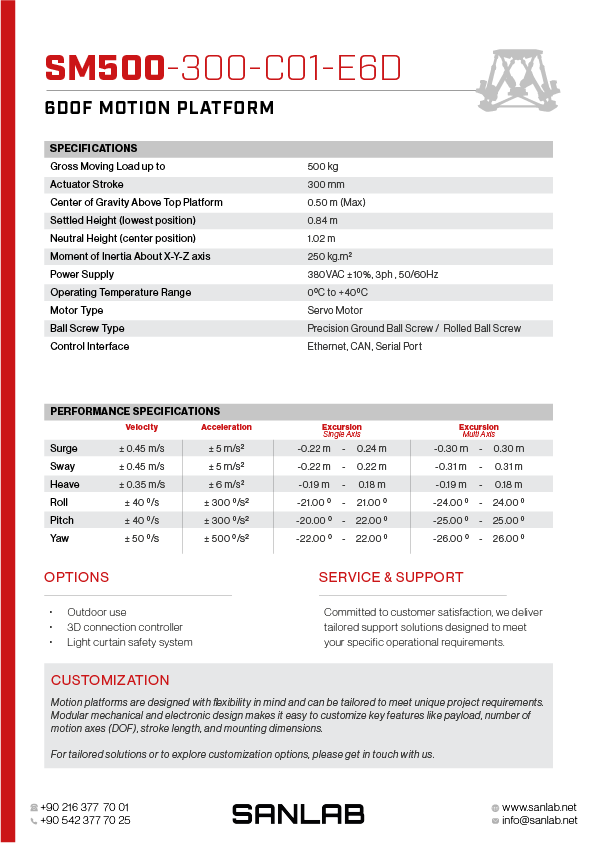

SMotion500 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts an impressive payload capacity of 500 kilograms, making it a versatile solution for a range of industries.
- Dimension: Length 160 cm x Width 140 cm x Height 102 cm
- Payload Capacity: 500 kg
- Actuator Stroke: 300 mm
- Moment of Inertia: 250 kg.m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

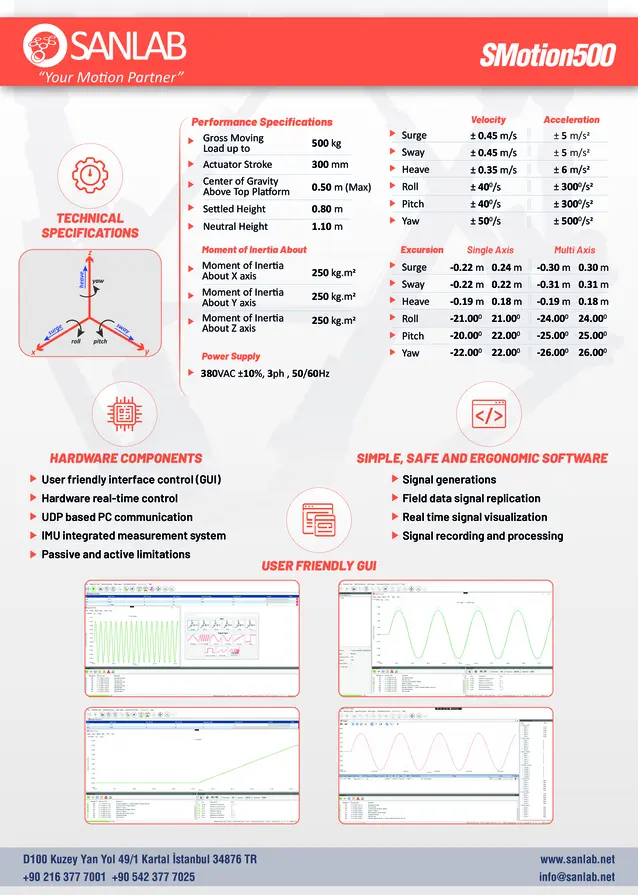

Performance Specifications
Velocity |
Acceleration |
Excursion (Single Axis) |
Excursion (Multi Axis) | |
|---|---|---|---|---|
Surge
|
± 0.45 m/s
|
± 5 m/s2
|
-0.22m | 0.24m
|
-0.30m | 0.30m
|
Sway
|
± 0.45 m/s
|
± 5 m/s2
|
-0.22m | 0.22m
|
-0.31m | 0.31m
|
Heave
|
± 0.35 m/s
|
± 6 m/s2
|
-0.19m | 0.18m
|
-0.13m | 0.11m
|
Roll
|
40°/s
|
± 300°/s²
|
-21.00° | 21.00°
|
-24.00° | 24.00°
|
Pitch
|
40°/s
|
± 300°/s²
|
-20.00° | 22.00°
|
-25.00° | 25.00°
|
Yaw
|
50°/s
|
± 500°/s²
|
-22.00° | 22.00°
|
-26.00° | 26.00°
|
Applications
Remote Control Weapon Systems Testing
Camera Tracking Systems Testing
Electro-Optical Systems Testing
Radar Testing
Rotator Testing
Antenna Testing
.
Turret Systems Testing
Vehicle Simulator
Stabilization Testing
Driving Simulator
Flight Simulator
Mockup Simulator
FORM & FUNCTION
SMotion500 delivers 6DOF motion through a reinforced, high-capacity structure, ideal for demanding simulations and system testing. Its durable build ensures smooth operation in industrial, vehicle, or defense-grade environments.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM500-300-C01-E6D
OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion500 Outdoor variant, which includes all the features of the standard SMotion500 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -30°C to +60°C
- Storage Temperature Range: -20°C to +50°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion500, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
