SM1800-600-C01-E6D
SMotion1800 is a high-load 6DOF motion platform with 1800 kg payload, built for simulation, system testing, and integration. Its robust design and smooth control suit defense, research, and industrial setups.
SM1800-600-C01-E6D
MOTION PLATFORM

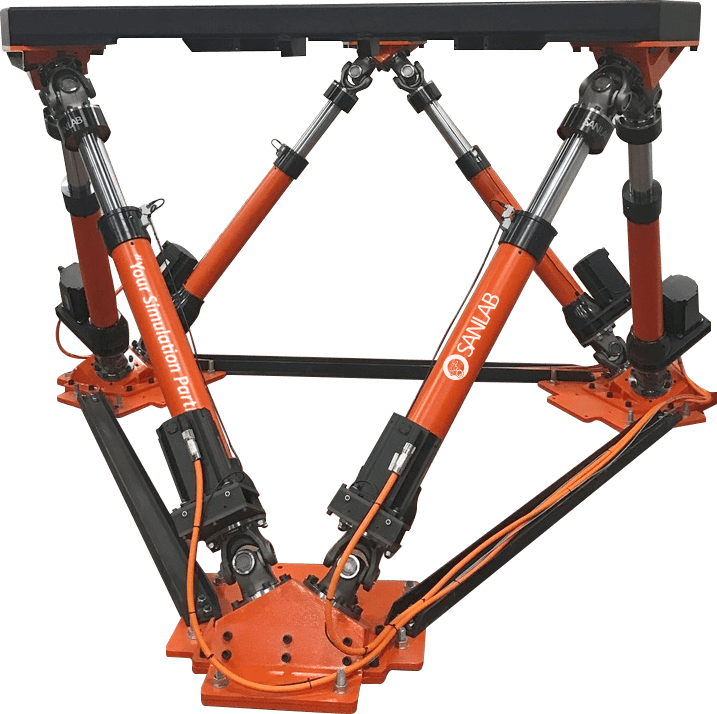

SMotion1800 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed for precise and responsive movement across complex simulation scenarios. With a payload capacity of 1800 kilograms, it provides a robust and flexible solution for demanding industrial and defense applications.
- Dimensions: Length 301 cm x Width 285 cm x Height 170 cm
- Payload Capacity: 1800 kg
- Actuator Stroke: 600 mm
- Moment of Inertia: 2000 kg·m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz
Performance Specifications
Velocity |
Acceleration |
Excursion (Single Axis) |
Excursion (Multi Axis) | |
|---|---|---|---|---|
Surge
|
± 0.80 m/s
|
± 7 m/s2
|
-0.42m | 0.53m
|
-0.58m | 0.57m
|
Sway
|
± 0.80 m/s
|
± 7 m/s2
|
-0.43m | 0.43m
|
-0.62m | 0.62m
|
Heave
|
± 0.70 m/s
|
± 9 m/s2
|
-0.40m | 0.35m
|
-0.40m | 0.35m
|
Roll
|
50°/s
|
± 300°/s²
|
-20.60° | 20.60°
|
-26.41° | 26.41°
|
Pitch
|
50°/s
|
± 300°/s²
|
-20.20° | 21.10°
|
-29.70° | 26.01
|
Yaw
|
55°/s
|
± 400°/s²
|
-24.00° | 24.00°
|
-26.56° | 26.56°
|
Applications
Remote Control Weapon Systems Testing
Camera Tracking Systems Testing
Electro-Optical Systems Testing
Radar Testing
Rotator Testing
Antenna Testing
.
Turret Systems Testing
Vehicle Simulator
Stabilization Testing
Driving Simulator
Flight Simulator
Mockup Simulator
FORM & FUNCTION
SMotion1800 delivers accurate 6DOF motion through a reinforced frame, built for continuous operation under heavy loads. Ideal for large test systems, simulation cabins and hardware labs.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM1800 OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion1800 Outdoor variant, which includes all the features of the standard SMotion1800 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -30°C to +60°C
- Storage Temperature Range: -20°C to +50°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion1800, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
