SM500-E3D
Flight Simulator
3DOF Flight Simulator delivers precise pitch, roll and heave motion for realistic aviation training in a compact footprint. Four synchronized electro-mechanical actuators provide instant, lifelike feedback for every climb, bank and touchdown.
SM500-E3D Flight Simulator

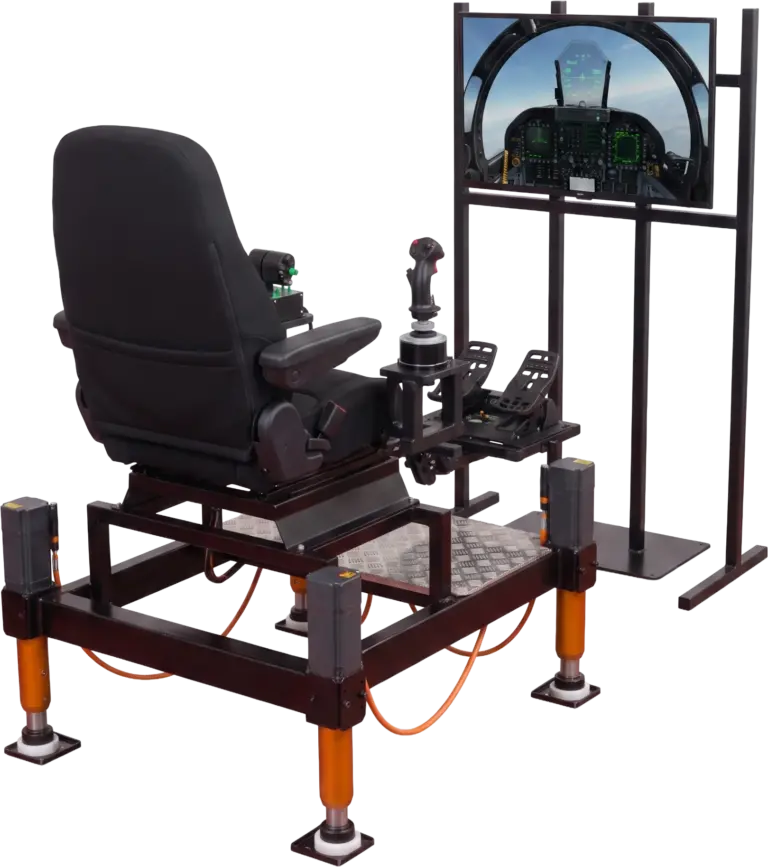

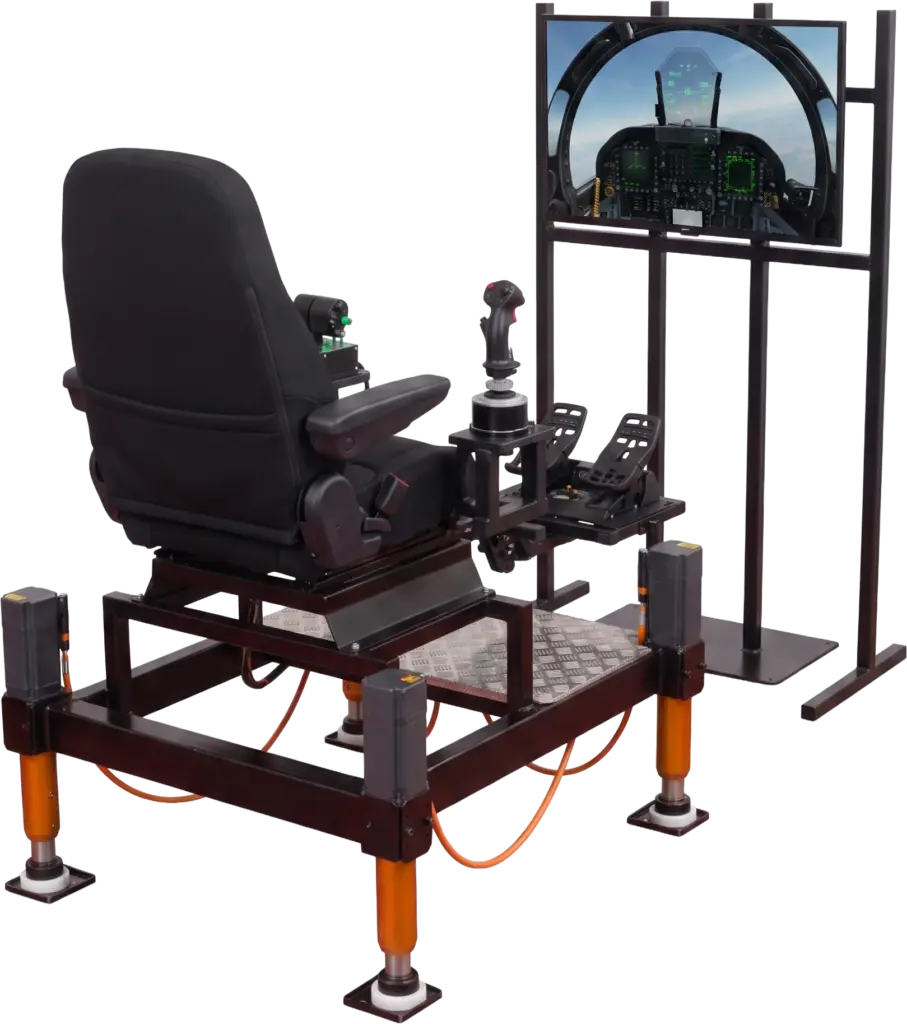

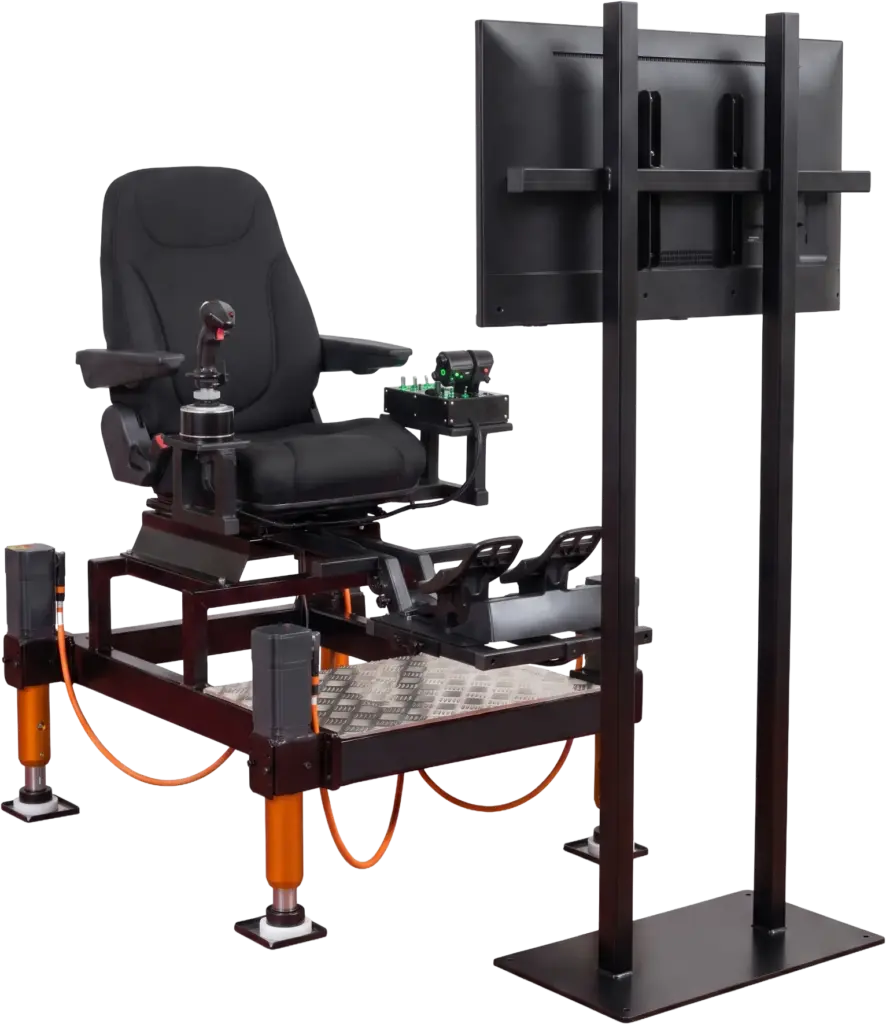

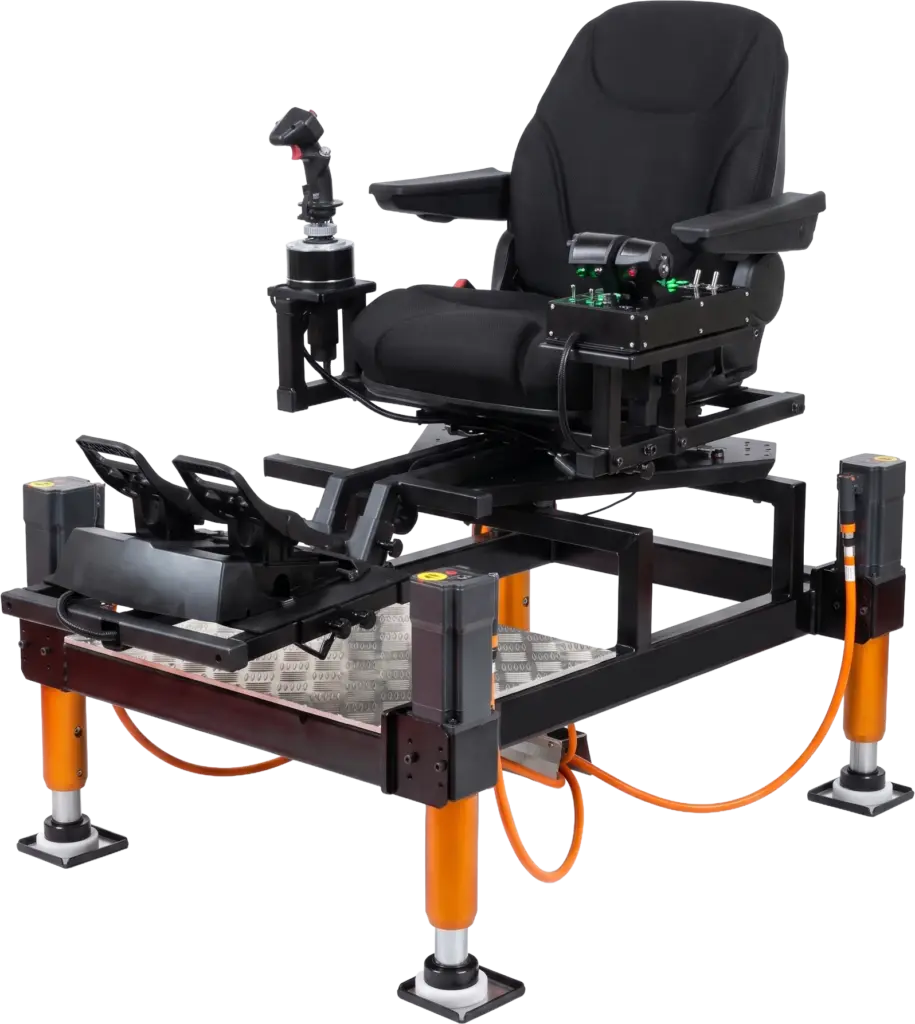

3DOF Flight Simulator is a compact motion platform designed to deliver the essential flight cues of pitch, roll and heave with high responsiveness. Built on the SMotion500-E3D vertical-axis platform, it combines four synchronized electro-mechanical actuators with an operator seat, HOTAS flight controls, rudder pedals and a single-screen or VR visual system. The result is a cost-effective, space-efficient trainer for simulation, training and entertainment applications.
- Payload Capacity: 500 kg
- Single Actuator Payload: 125 kg
- Dynamic Stroke: 76.2 mm · Static Stroke: 86.0 mm
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz
Performance Specifications
|
|
Position
|
Velocity
|
Acceleration
|
|---|---|---|---|
|
Heave
|
± 38.1 mm (± 0.0381 m)
|
± 0.1 m/s
|
± 9.81 m/s2
|
|
Roll
|
± 7.4°
|
± 19.8°/s
|
± 1900°/s2
|
|
Pitch
|
± 7.4°
|
± 19.8°/s
|
± 1900°/s2
|
Compatible With
DCS (Digital Combat Simulator)
Prepar3D
Custom software integration available
Applications
Flight training simulation
Pilot skill development
Procedural and instrument training
Motion cueing research
Aerospace R&D test platform
FORM & FUNCTION
3DOF Flight Simulator delivers precise heave, roll and pitch motion through four vertical electro-mechanical actuators driven in synchronization. Its low-profile frame, oil-free actuators and encoder-based feedback provide safe, accurate and repeatable motion for training and entertainment, while the compact footprint allows installation in classrooms, offices and exhibition spaces without special floor preparation.
Core Capabilities
Compability Across Diverse Games
Supports simulators from racing to flight.
User-Friendly Design
Easy setup, oil-free design.
Customizable
Integrates with custom software and cockpit layouts.
Real Response Time
Instant motion feedback.
In-House Software
Full system integration.
Customizable
Low-profile 3DOF platform, minimal floor space.
Explore Full Specifications & Features
3DOF Flight Simulator
Built for flight schools, training centers and aviation enthusiasts who need realistic motion cues without the footprint of a full hexapod. 3DOF Flight Simulator delivers the essential sensations of flight: the pitch of a climb, the roll of a bank and the heave of turbulence, all synchronized with leading flight simulation software. Compact enough for a classroom, capable enough for serious training.
- Immersive Flight Feel
- Full Flight Software Compatibility
- Real-Time Feedback
- Plug & Play Setup
- Long-Session Comfort
- Screen or VR Ready
- Not Just Using Technology — Redefining Flight Simulation
Built Different
While others assemble generic components, we engineer everything, from the actuators to the firmware. 3DOF Flight Simulator is not a kit; it is a complete system built on SANLAB's SLine vertical-axis motion platform, with four synchronized electro-mechanical actuators, encoder-based feedback and in-house control software.
- Fully Custom Motion Core
- Pro-Built Flight Frame
- Zero-Lag Feedback Loop
- Flight Engine Harmony
More Worlds. Same Flight.
From military combat to civilian aviation, 3DOF Flight Simulator supports a growing list of simulation titles, all powered by SANLAB motion realism. Wherever you fly, it puts you inside the action.
