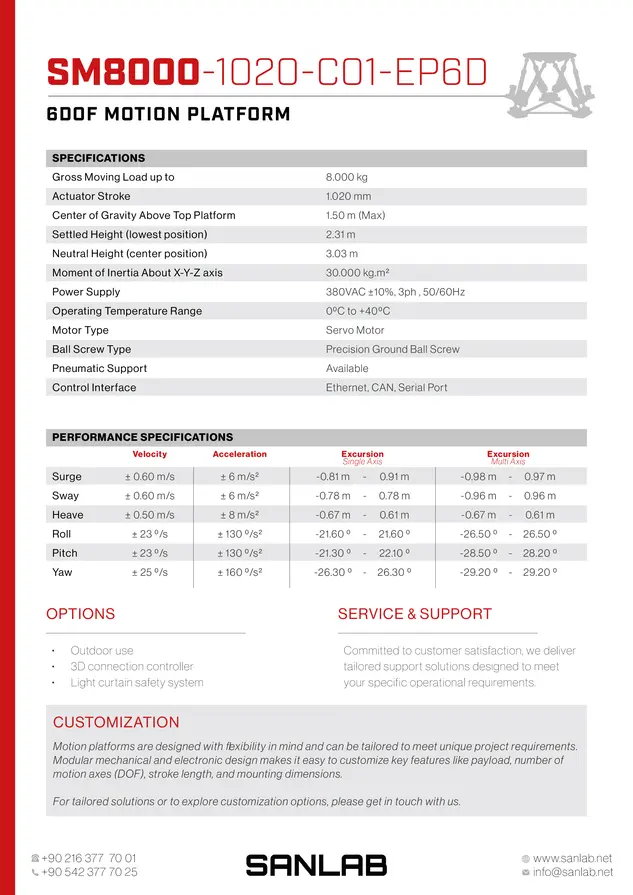

SM8000-1020-C01-EP6D
SMotion8000 is a 6DOF motion platform with 8000 kg payload, built for simulation, testing, and integration. Its stable motion and rigid design suit demanding industrial setups.
SM8000-1020-C01-EP6D
MOTION PLATFORM
SMotion8000 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts a payload capacity of 8000 kilograms, making it a versatile solution for a range of industries.
- Dimension: Length 555 cm x Width 491 cm x Height 303 cm
- Payload Capacity: 8000 kg
- Actuator Stroke:1020 mm
- Moment of Inertia: 15.000 kg.m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

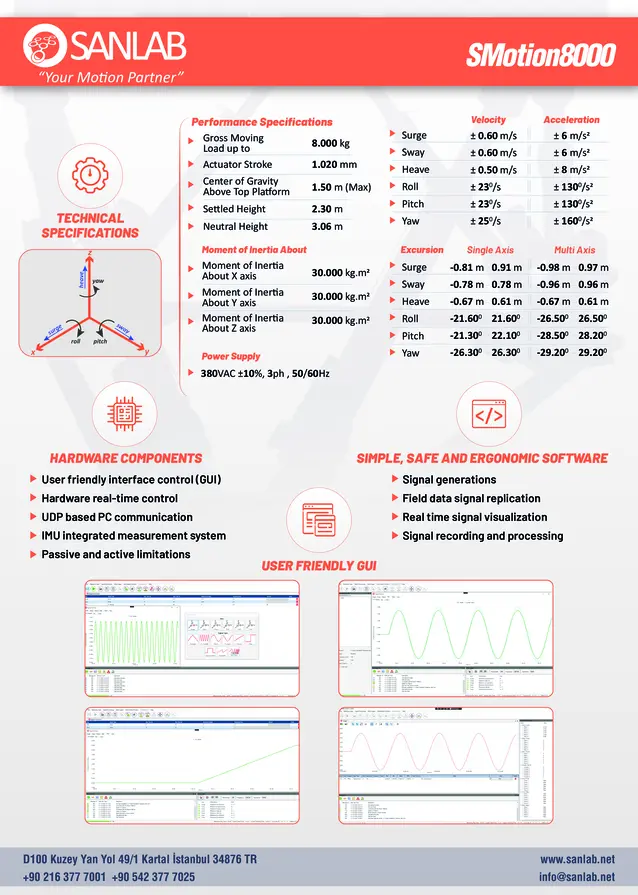

Performance Specifications
Velocity |
Acceleration |
Excursion (Single Axis) |
Excursion (Multi Axis) | |
|---|---|---|---|---|
Surge
|
± 0.60 m/s
|
± 6 m/s2
|
-0.81m | 0.91m
|
-0.98m | 0.97m
|
Sway
|
± 0.60 m/s
|
± 6 m/s2
|
-0.78m | 0.78m
|
-0.96m | 0.96m
|
Heave
|
± 0.50 m/s
|
± 8 m/s2
|
-0.67m | 0.61m
|
-0.67m | 0.61m
|
Roll
|
23°/s
|
± 130°/s²
|
-21.60° | 21.60°
|
-26.50° | 26.50°
|
Pitch
|
23°/s
|
± 130°/s²
|
-21.30° | 22.10°
|
-28.50° | 28.20°
|
Yaw
|
25°/s
|
± 160°/s²
|
-26.30° | 26.30°
|
-29.20° | 29.20°
|
Applications
Remote Control Weapon Systems Testing
Camera Tracking Systems Testing
Electro-Optical Systems Testing
Radar Testing
Rotator Testing
Antenna Testing
.
Turret Systems Testing
Vehicle Simulator
Stabilization Testing
Driving Simulator
Flight Simulator
Mockup Simulator
FORM & FUNCTION
SMotion50 offers 6DOF motion capability in a compact mechanical structure, making it ideal for applications where space efficiency and responsiveness are essential. Its robust build and field-ready design ensure stable operation in constrained or mobile setups.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM8000-1020-C01-EP6D
OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion8000 Outdoor variant, which includes all the features of the standard SMotion8000 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -30°C to +60°C
- Storage Temperature Range: -20°C to +50°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion8000, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
