SMOTION6000-E6D
SMotion6000 is a 6DOF motion platform with 6000 kg payload, built for simulation, testing, and integration. Its stable motion and rigid design suit demanding industrial setups.
SM6000 MOTION PLATFORM

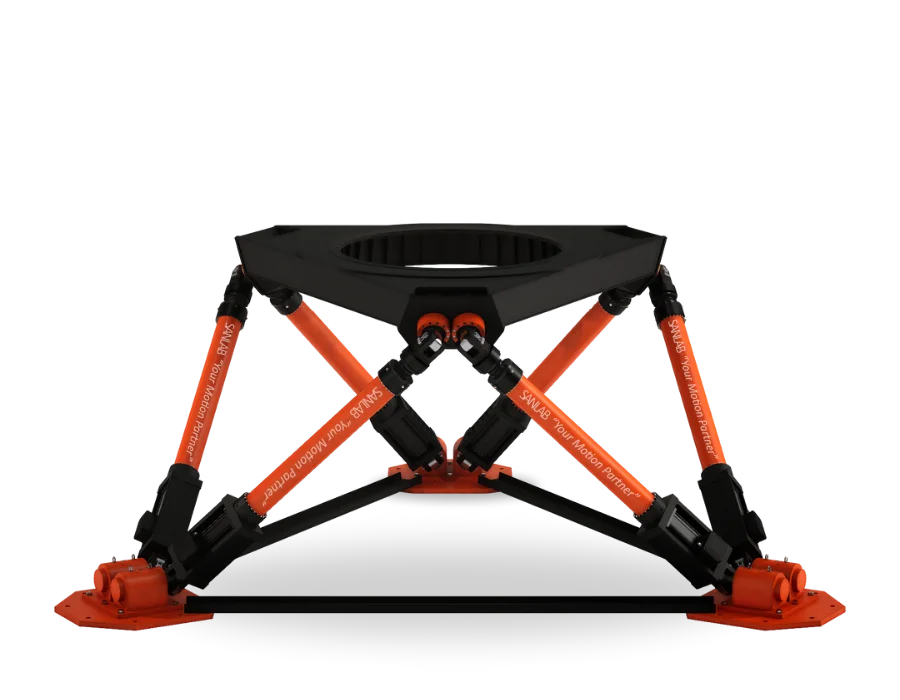

SMotion6000 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts a payload capacity of 6000 kilograms, making it a versatile solution for a range of industries.z
- Dimension: Length 110 cm x Width 100 cm x Height 70 cm
- Payload Capacity: 200 kg
- Actuator Stroke: 1020 mm
- Moment of Inertia: 92 kg·m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

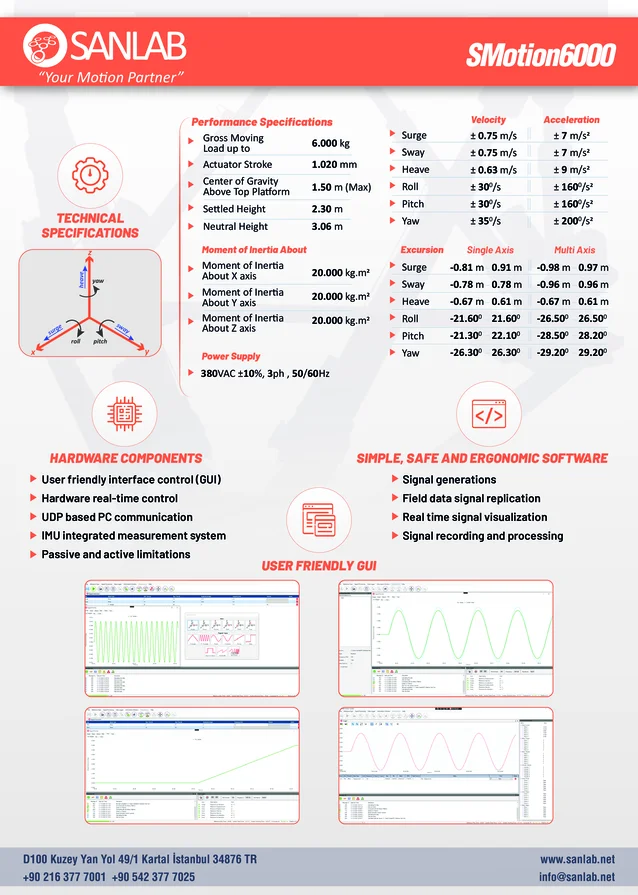

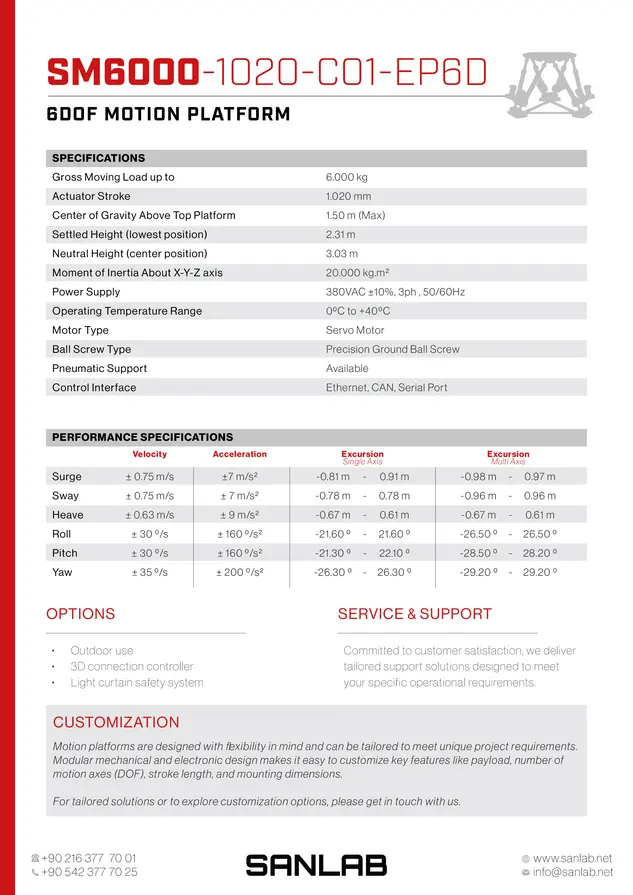

Performance Specifications
|
|
Velocity
|
Acceleration
|
|---|---|---|
|
Surge
|
± 0.75 m/s
|
± 7 m/s2
|
|
Sway
|
± 0.75 m/s
|
± 7 m/s2
|
|
Heave
|
± 0.63 m/s
|
± 9 m/s2
|
|
Roll
|
30°/s
|
± 160°/s²
|
|
Pitch
|
30°/s
|
± 160°/s²
|
|
Yaw
|
35°/s
|
± 200°/s²
|
Compatible With
Remote Control Weapon Systems
Camera Tracking Systems
Gimbal Systems
Radar Systems
Rotator Systems
Turret Systems
Vehicle Cabin/Body Systems
Aircraft Cabin Systems
Facts
6DOF (degrees of freedom)
6 Electro-Mechanical Actuators
6000 kg total payloads
1020 mm actuator stroke
Applications
Component validation
Turret & RCW Test
Signal replication
Signal generation
Real time simulation table
Field data system testing simulator
FORM & FUNCTION
SMotion6000 delivers powerful 6DOF motion through a reinforced structure, built to handle extreme loads. It supports large simulators, test assemblies, and integrated hardware platforms.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM6000 OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion6000 Outdoor variant, which includes all the features of the standard SMotion6000 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -30°C to +60°C
- Storage Temperature Range: -20°C to +50°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion6000, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
