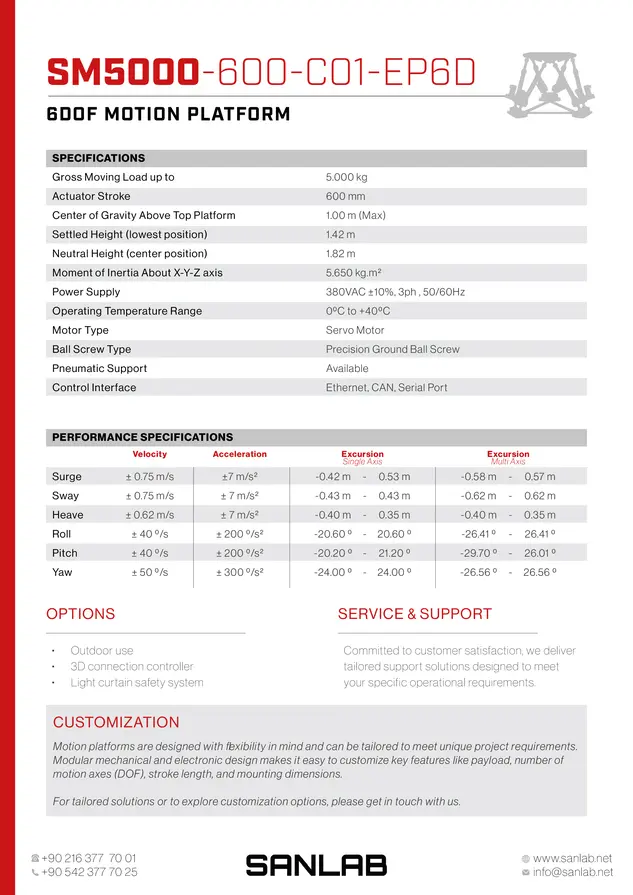

SM5000-600-C01-EP6D
SMotion5000 is a heavy-duty 6DOF motion platform with 5000 kg payload, built for simulation, system testing, and hardware integration. Its precise motion and solid frame suit full-scale industrial and research setups.
SM5000-600-C01-EP6D
MOTION PLATFORM
SMotion5000 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts a payload capacity of 5000 kilograms, making it a versatile solution for a range of industries
- Dimensions: Length 324 cm x Width 296 cm x Height 182 cm
- Payload Capacity: 5000 kg
- Actuator Stroke: 600 mm
- Moment of Inertia: 5650 kg.m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz
Performance Specifications
Velocity |
Acceleration |
Excursion (Single Axis) |
Excursion (Multi Axis) | |
|---|---|---|---|---|
Surge
|
± 0.75 m/s
|
± 7 m/s2
|
-0.42m | 0.53m
|
-0.58m | 0.57m
|
Sway
|
± 0.75 m/s
|
± 7 m/s2
|
-0.43m | 0.43m
|
-0.62m | 0.62m
|
Heave
|
± 0.62 m/s
|
± 7 m/s2
|
-0.40m | 0.35m
|
-0.40m | 0.35m
|
Roll
|
40°/s
|
± 200°/s²
|
-20.60° | 20.60°
|
-26.41° | 26.41°
|
Pitch
|
40°/s
|
± 200°/s²
|
-20.20° | 21.20°
|
-29.70° | 26.01
|
Yaw
|
50°/s
|
± 300°/s²
|
-24.00° | 24.00°
|
-26.56° | 26.56°
|
Applications
Remote Control Weapon Systems Testing
Camera Tracking Systems Testing
Electro-Optical Systems Testing
Radar Testing
Rotator Testing
Antenna Testing
.
Turret Systems Testing
Vehicle Simulator
Stabilization Testing
Driving Simulator
Flight Simulator
Mockup Simulator
FORM & FUNCTION
SMotion5000 delivers accurate 6DOF motion through a durable structure, optimized for intensive workloads and continuous operation. It supports large hardware, integrated rigs, and validation platforms.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM5000-600-C01-EP6DO
OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion5000 Outdoor variant, which includes all the features of the standard SMotion5000 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -20°C to +50°C
- Storage Temperature Range: -30°C to +60°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion5000, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
