SMOTION4000-E6D
SMotion4000 is a heavy-duty 6DOF motion platform with 4000 kg payload, built for simulation, system testing, and hardware integration. Its precise motion and solid frame suit full-scale industrial and research setups.

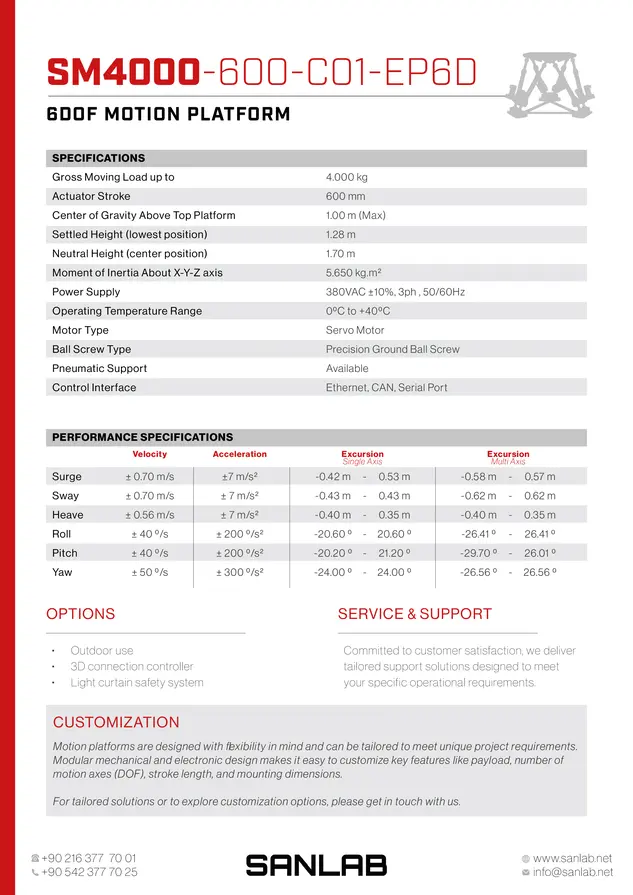

SM4000 MOTION PLATFORM
SMotion4000 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts a payload capacity of 4000 kilograms, making it a versatile solution for a range of industries
- Dimensions: Length 290 cm x Width 300 cm x Height 210 cm
- Payload Capacity: 4000 kg
- Actuator Stroke: 600 mm
- Moment of Inertia: 5650 kg·m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

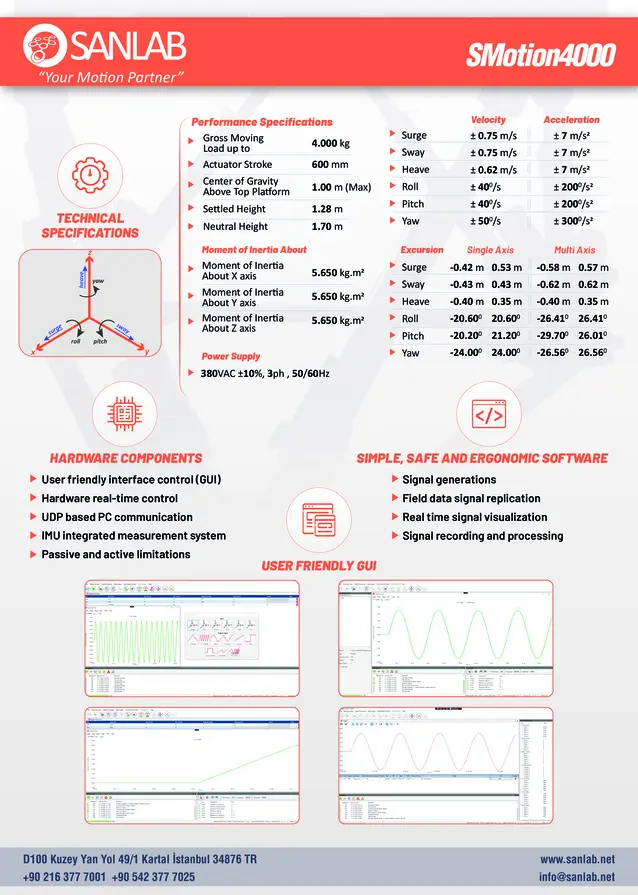

Performance Specifications
|
|
Velocity
|
Acceleration
|
|---|---|---|
|
Surge
|
± 0.75 m/s
|
± 7 m/s2
|
|
Sway
|
± 0.75 m/s
|
± 7 m/s2
|
|
Heave
|
± 0.62 m/s
|
± 7 m/s2
|
|
Roll
|
40°/s
|
± 200°/s²
|
|
Pitch
|
40°/s
|
± 200°/s²
|
|
Yaw
|
50°/s
|
± 300°/s²
|
Compatible With
Remote Control Weapon Systems
Camera Tracking Systems
Gimbal Systems
Radar Systems
Rotator Systems
Turret Systems
Vehicle Cabin/Body Systems
Aircraft Cabin Systems
Facts
6DOF (degrees of freedom)
6 Electro-Mechanical Actuators
4000 kg total payloads
600 mm actuator stroke
Applications
Turret & RCW Test
Component validation
Signal replication
Signal generation
Real time simulation table
Field data system testing simulator
FORM & FUNCTION
SMotion4000 delivers accurate 6DOF motion through a durable structure, optimized for intensive workloads and continuous operation. It supports large hardware, integrated rigs, and validation platforms.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM4000 OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion4000 Outdoor variant, which includes all the features of the standard SMotion4000 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -30°C to +60°C
- Storage Temperature Range: -20°C to +50°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion4000, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
