2DOF Motion Platforms
SANLAB 2DOF Motion Platforms deliver high precision rotational and tilting movement engineered for the most demanding defense and industrial applications. Supporting extreme payloads up to 25 tons, these systems provide a professional foundation for tank test and training simulators, prototype evaluation, and authentic field scenario replication. With a high moment of inertia and real field data playback capabilities, our platforms ensure high fidelity motion simulation for multi personnel training and structural testing infrastructures.
SM25000-E2D
Payload: 25000 KG

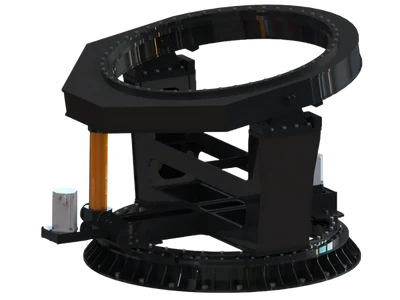

Engineered for ultra heavy operations, this 2DOF motion platform supports 25 ton payloads with high torque azimuth and elevation control. It is the ideal solution for large scale industrial testing, prototype evaluation, and defense simulators, including Main Battle Tank (MBT) and heavy armored vehicle training systems.
SMOTION250 - E2D
Payload: 250 KG
This low profile linear motion platform supports 250 kg payloads, providing responsive XY-axis control for testing, sensor calibration, or equipment alignment tasks.
Advanced Motion Control and System Integration
The core strength of SANLAB 2DOF Motion Platforms lies in the sophisticated integration of hardware and software designed for real time responsiveness. Every system features an integrated control panel that allows operators to manage complex motion profiles with millisecond level precision. This is particularly critical in professional training environments where even a slight latency can break the immersion or lead to inaccurate testing results.
Our 2DOF Motion Platforms are engineered to be future proof, supporting seamless integration into a wide variety of existing research and industrial infrastructures. The flexible control interface allows for the synchronization of the platform with external sensors, visual systems, and data acquisition tools, making it a versatile centerpiece for any high fidelity simulation lab.
Operational Safety and Environmental Resilience
When dealing with heavy duty operations especially with the 25-ton payload capacity of the SM25000-E2D safety and reliability are paramount. SANLAB 2DOF motion platforms incorporate multiple layers of hardware and software safety protocols to protect both the equipment and the personnel during high torque maneuvers.
To ensure long term operational continuity, these systems are built to withstand demanding conditions. With an operating temperature range of 0°C to +40°C and a robust power supply architecture (380VAC), our 2DOF motion platforms maintain consistent performance even in intensive, multi shift testing environments. The mechanical integrity of the platforms is further supported by a high moment of inertia (55,000 kg.m²), ensuring that even the most massive payloads are handled with smooth, controlled transitions.
2DOF Motion Platforms - FAQ
How does a 2DOF motion platform differ from 3DOF or 6DOF systems?

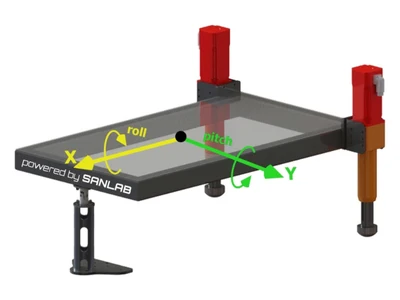

While 6DOF systems offer full spatial movement, a 2DOF motion platform focuses on precise pitch and roll (or XY-axis) control. This makes it a more cost effective and specialized solution for applications that do not require vertical or complex rotational movements.
What is the maximum payload capacity for SANLAB 2DOF systems?
Our 2DOF motion platforms are designed to handle a wide range of loads. We offer solutions ranging from compact models for light equipment to ultra heavy systems capable of supporting up to 25,000 kg for large scale structural testing.
Which defense and tank systems are compatible with SANLAB 2DOF motion platforms?
Our 2DOF motion platforms, specifically the SM25000-E2D series, are highly adaptable and fully compatible with modern main battle tanks such as the M60T, Leopard 2A4, and Altay. They are designed to support comprehensive Tank Test & Training Simulators, prototype testing, and Command & Control training scenarios by replicating authentic field data.
