Heavy Payload Stabilizers
SANLAB’s Heavy Payload Stabilizer series provides 2-DOF roll and pitch stabilization for reliable performance in marine environments, with a payload range of 150 kg to 300 kg.

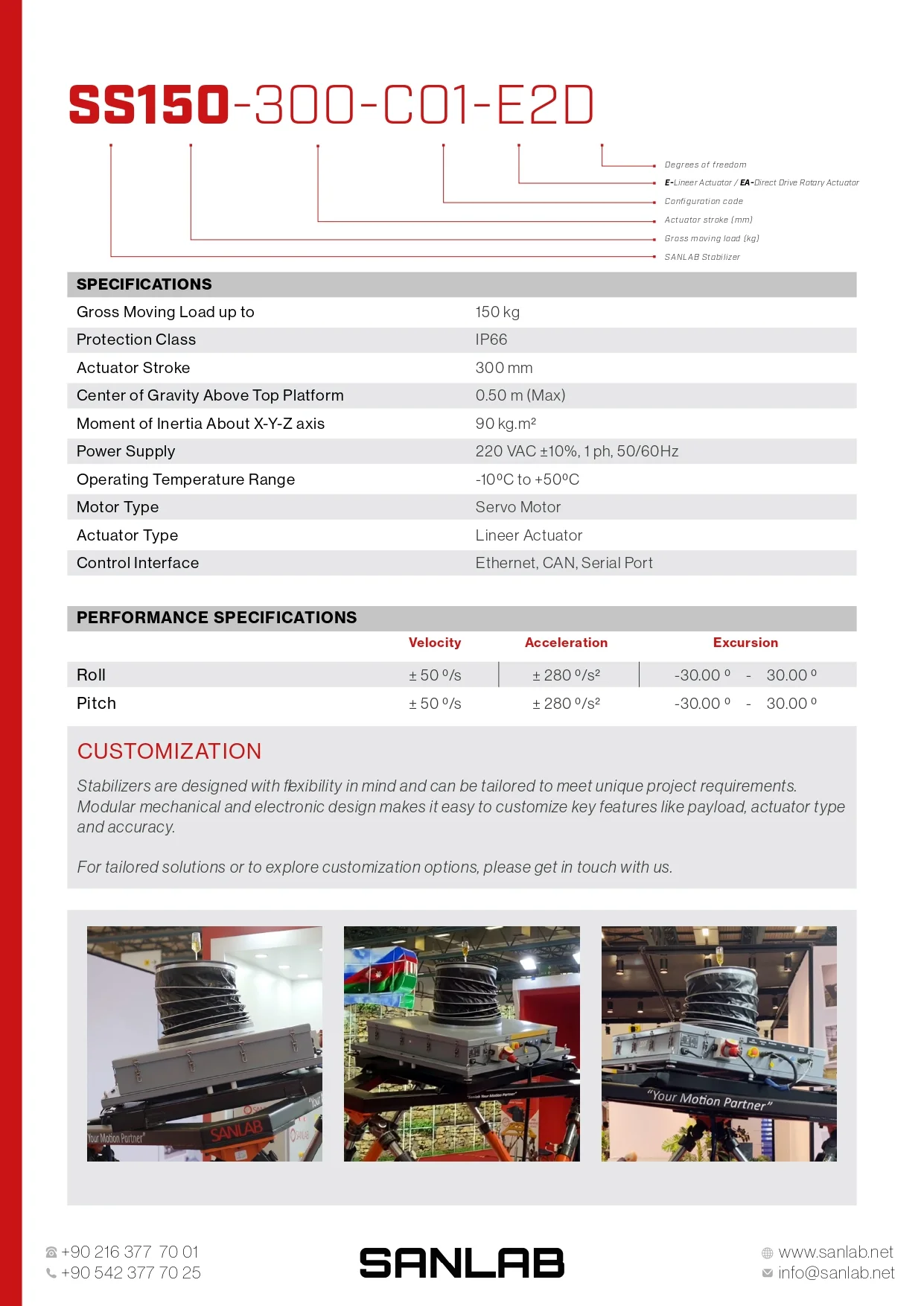

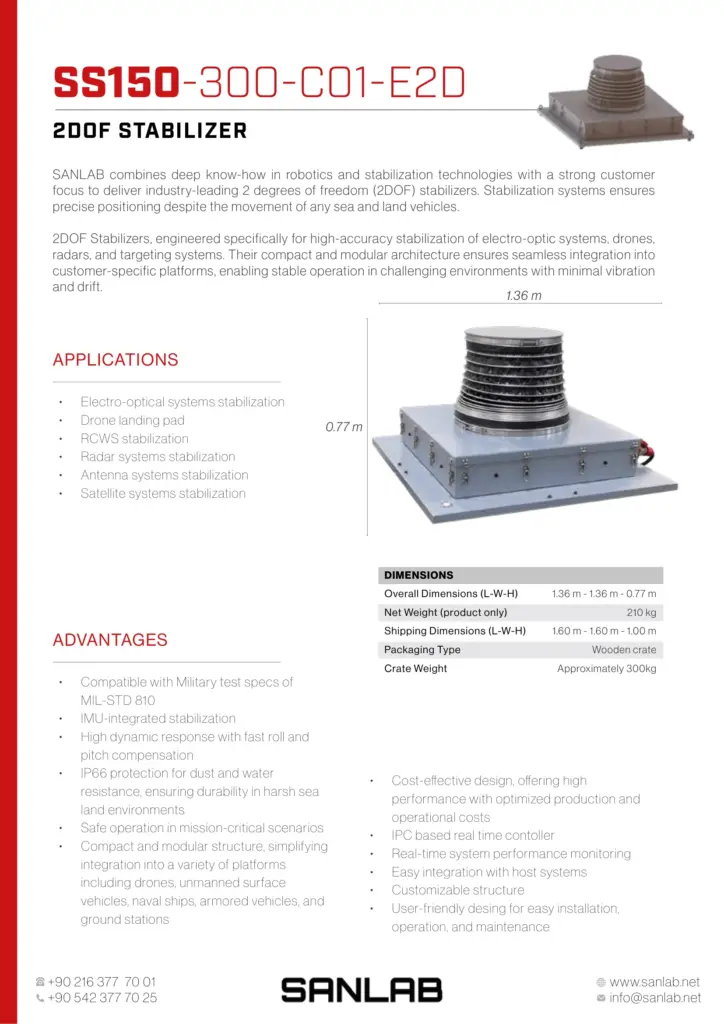

SS150 STABILIZER
SS150 Stabilizer Platform is a precision 2DOF platform delivering accurate roll and pitch control with high responsiveness. Its 150 kg payload and rugged design ensure reliable stabilization for marine, defense and aerospace.
- Payload Capacity: 150 kg
- Actuator Stroke: 300 mm
- Moment of Inertia: 90 kg·m²
- Dimensions: L 136 cm x W 136 cm x H 77 cm
Performance Specifications
|
|
Excursion
|
Velocity
|
Acceleration
|
|---|---|---|---|
|
Roll
|
± 30°
|
± 50°/s
|
± 280°/s²
|
|
Pitch
|
± 30°
|
± 50°/s
|
± 280°/s²
|
Technical Specifications
Power Supply:220VAC ±10%, 1ph , 50/60Hz
Actuator Type: Lineer Actuator
Operation Temperature: -10°...+50°
Protection Class: IP66

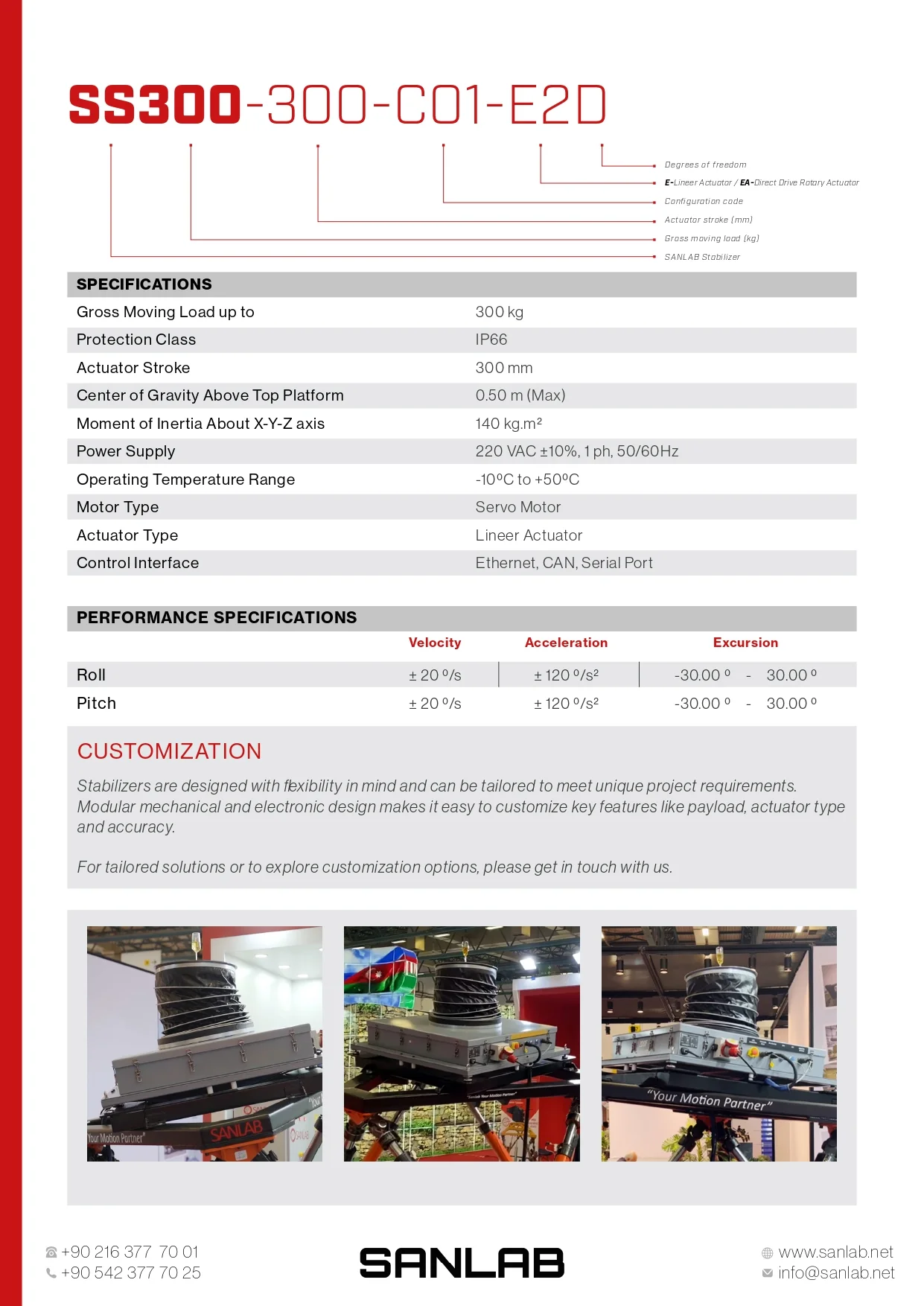

SS300 STABILIZER
SS300 Stabilized Platform delivers advanced 2DOF motion stabilization, ensuring smooth and reliable control for navigation, testing, and industrial applications. Designed for high-precision performance, it is ideal for aerospace, marine, and defense sectors.
- Payload Capacity: 300 kg
- Actuator Stroke: 300 mm
- Moment of Inertia: 140 kg·m² (X, Y, Z axes)
- Dimensions: L 136 cm x W 136 cm x H 77 cm
Performance Specifications
|
|
Excursion
|
Velocity
|
Acceleration
|
|---|---|---|---|
|
Roll
|
± 30°
|
± 20°/s
|
± 120°/s²
|
|
Pitch
|
± 30°
|
± 20°/s
|
± 120°/s²
|
Technical Specifications
Power Supply:220VAC ±10%, 1ph , 50/60Hz
Actuator Type: Lineer Actuator
Operation Temperature: -10°...+50°
Protection Class: IP66
Applications
- Aerospace Stabilization System
- Drone Landing Pad
- Electro-optical Systems Stabilization
- RCWS Stabilization
- Radar Systems Stabilization
- Antenna Systems Stabilization
Advantages
- Military-grade Durability
- IMU-Integrated Stabilization
- High Dynamic Response
- IP66 Protection
- Modular Design
- Easy Integration
Core Capabilities
2 Degrees of Freedom
Provides accurate roll and pitch stabilization.
Joystick Control
Delivers precise and stable motion control.
Stabilization Control Algorithm
Optimizes motion for precise and stable control.
User-Friendly GUI
Simplified control via intuitive interface.
UDP Based PC Communication
Ensures efficient data transmission.
Real-Time Control
Facilitates immediate response and adjustment.
FORM & FUNCTION
Heavy Payload Stabilizer Series delivers precise roll and pitch motion through servo-driven actuators. With payload capacities ranging from 150 kg to 300 kg, the system provides stable performance, intuitive user-interface control, and reliable operation for testing, navigation, and industrial applications.
