SMotion200 is a compact 6DOF motion platform with 200 kg payload, built for testing, simulation, and system integration. Its stable control and modular design suit mid-scale setups and research environments.
SM200-200-C01-E6D
MOTION PLATFORM

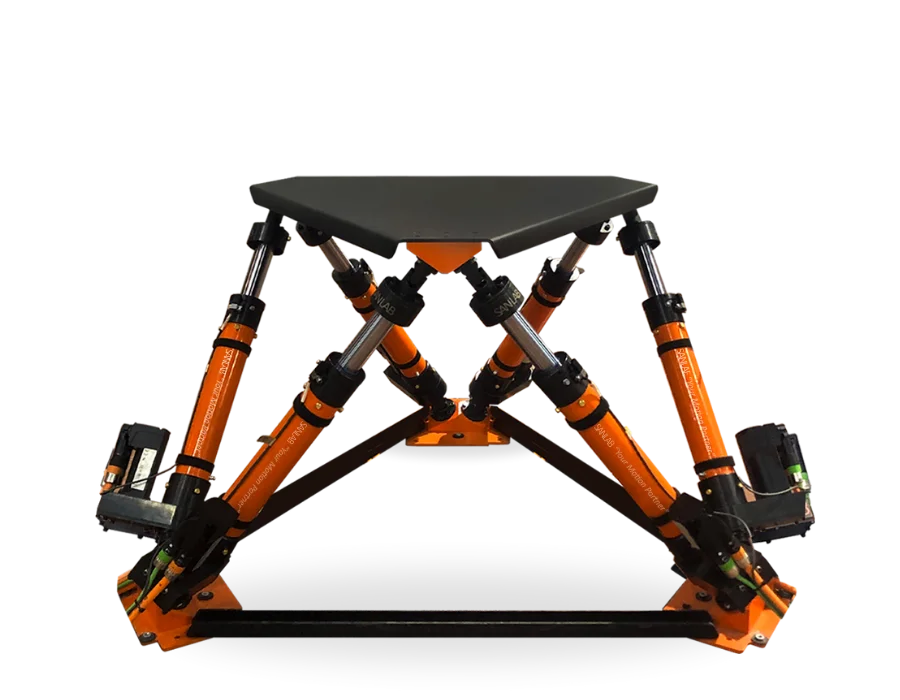

SMotion200 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts an impressive payload capacity of 200 kilograms, making it a versatile solution for a range of industries.

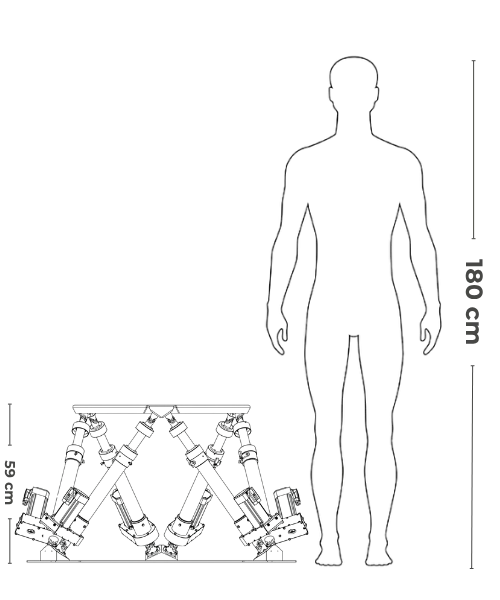

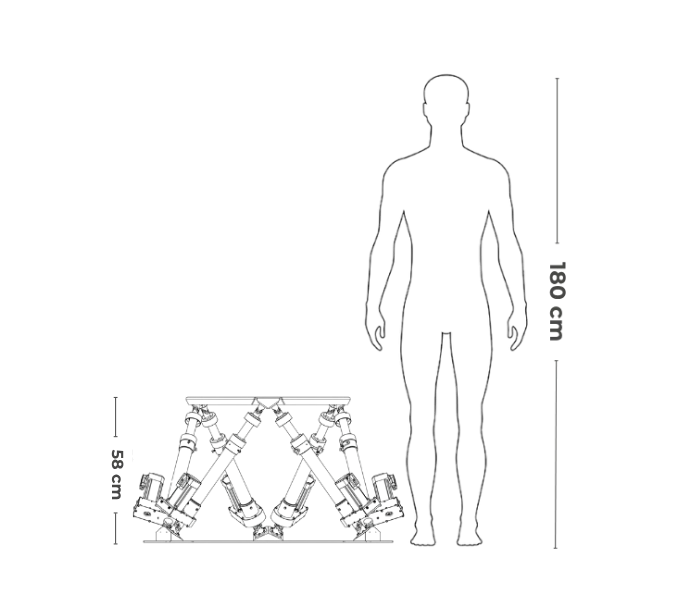

- Dimension: Length 108 cm x Width 96 cm x Height 58 cm
- Payload Capacity: 200 kg
- Actuator Stroke:200 mm
- Moment of Inertia: 92 kg·m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

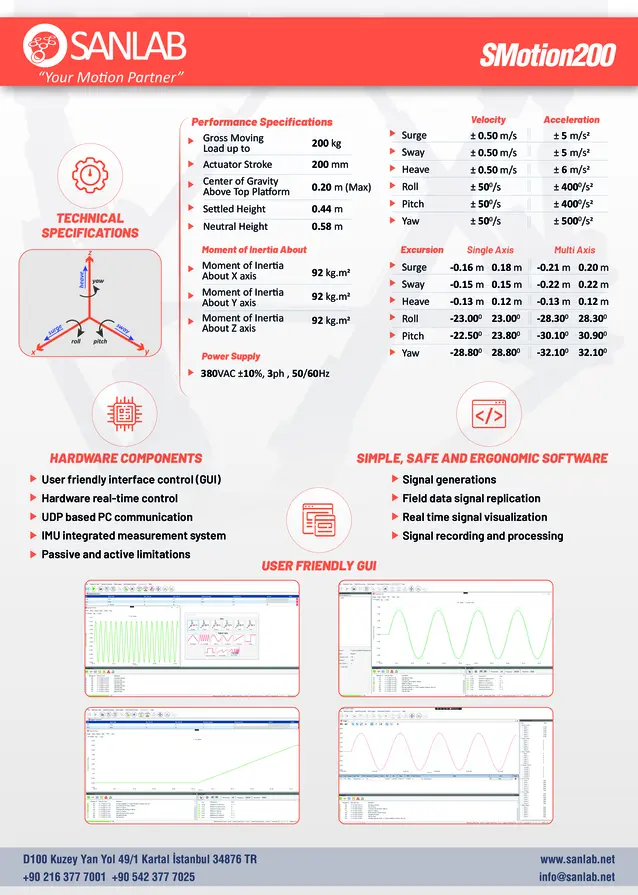

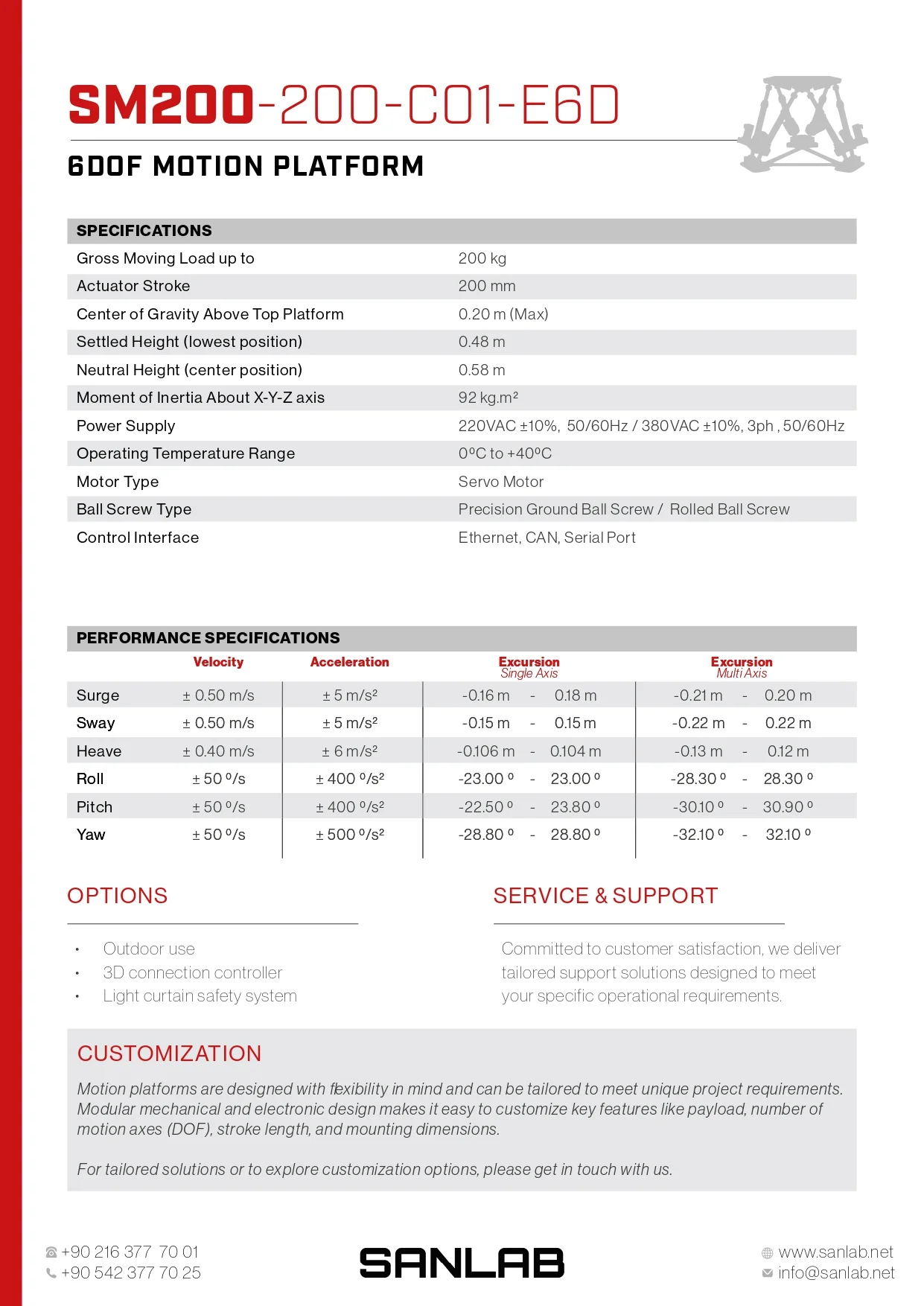

Performance Specifications
Velocity |
Acceleration |
Excursion (Single Axis) |
Excursion (Multi Axis) | |
|---|---|---|---|---|
Surge
|
± 0.50 m/s
|
± 5 m/s2
|
-0.16m | 0.18m
|
-0.21m | 0.20m
|
Sway
|
± 0.50 m/s
|
± 5 m/s2
|
-0.15m | 0.15m
|
-0.22m | 0.22m
|
Heave
|
± 0.40 m/s
|
± 6 m/s2
|
-0.13m | 0.12m
|
-0.13m | 0.12m
|
Roll
|
50°/s
|
± 400°/s²
|
-23.00° | 23.00°
|
-28.30° | 28.30°
|
Pitch
|
50°/s
|
± 400°/s²
|
-22.50° | 23.80°
|
-30.10° | 30.90°
|
Yaw
|
50°/s
|
± 500°/s²
|
-28.80° | 28.80°
|
-32.10° | 32.10°
|
Applications

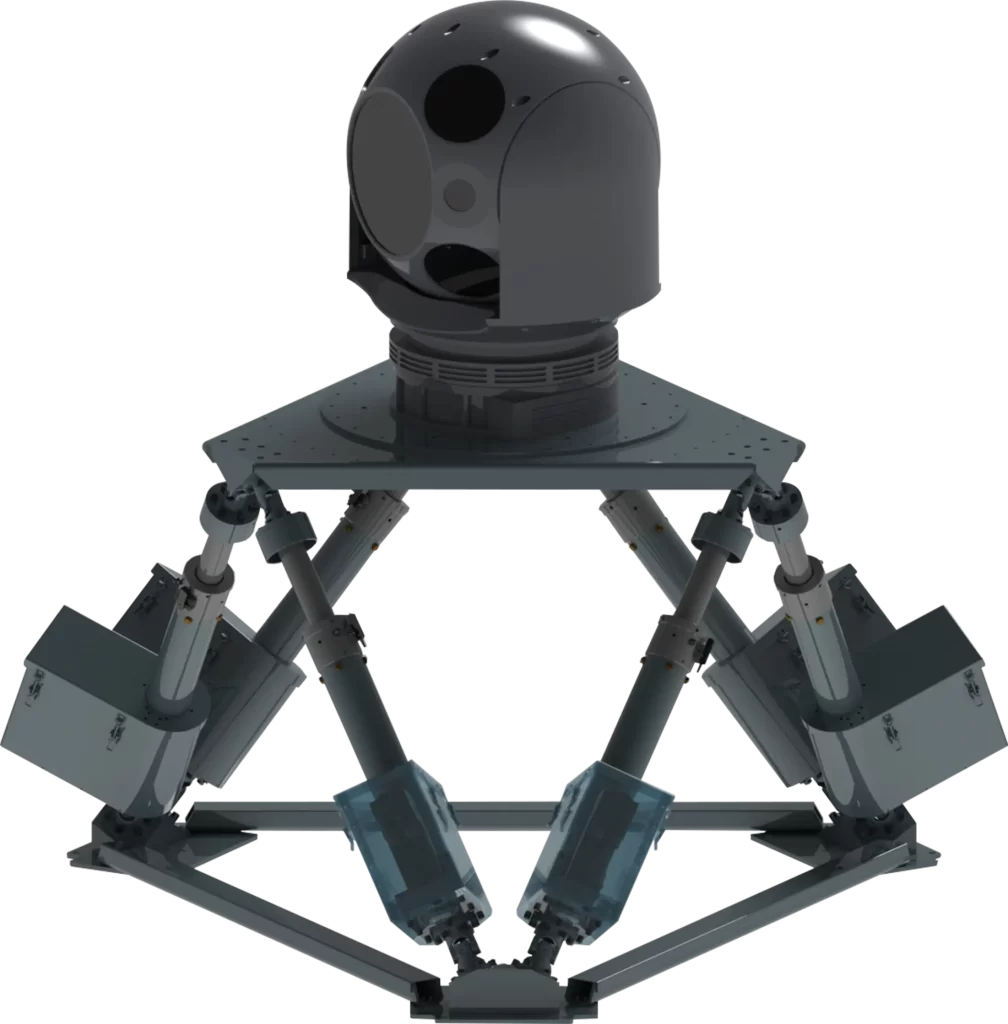

Camera Tracking Systems Testing
Electro-Optical Systems Testing
Radar Testing
Rotator Testing
.
Antenna Testing
Stabilization Testing
Driving Simulator
Flight Simulator
FORM & FUNCTION
SMotion200 delivers 6DOF motion performance in a stable, scalable structure, designed for applications requiring consistent precision and system-level integration. Its reinforced build ensures smooth operation in research setups, hardware testing, and mid-sized simulators.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM200-200-C01-E6DO OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion200 Outdoor variant, which includes all the features of the standard SMotion5 200 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -20°C to +50°C
- Storage Temperature Range: -30°C to +60°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion200, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
