SM100-200-C01-E6D
SMotion100 is a compact 6DOF motion platform with 100 kg payload, built for signal simulation, testing, and mobile use. Its precise control and light design suit labs and training setups.

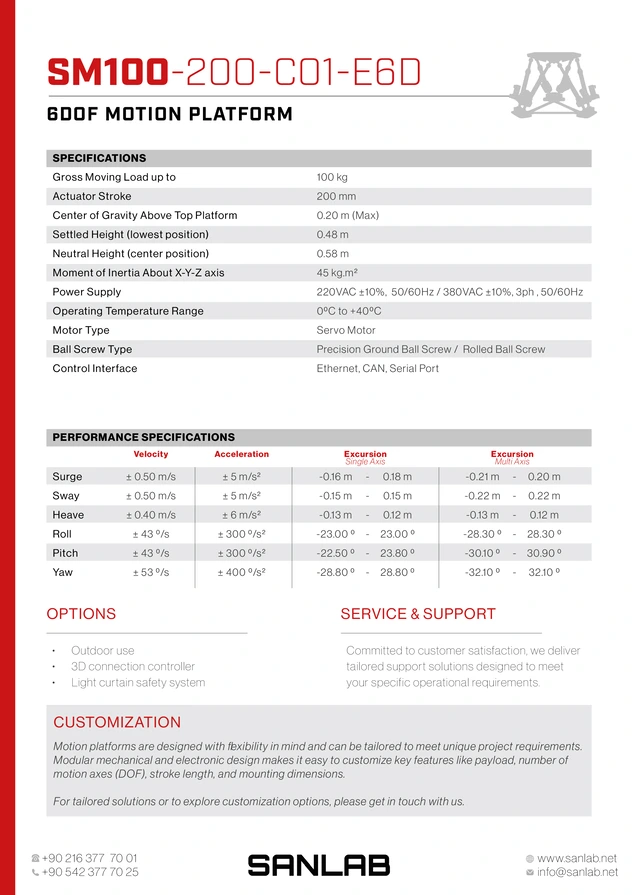

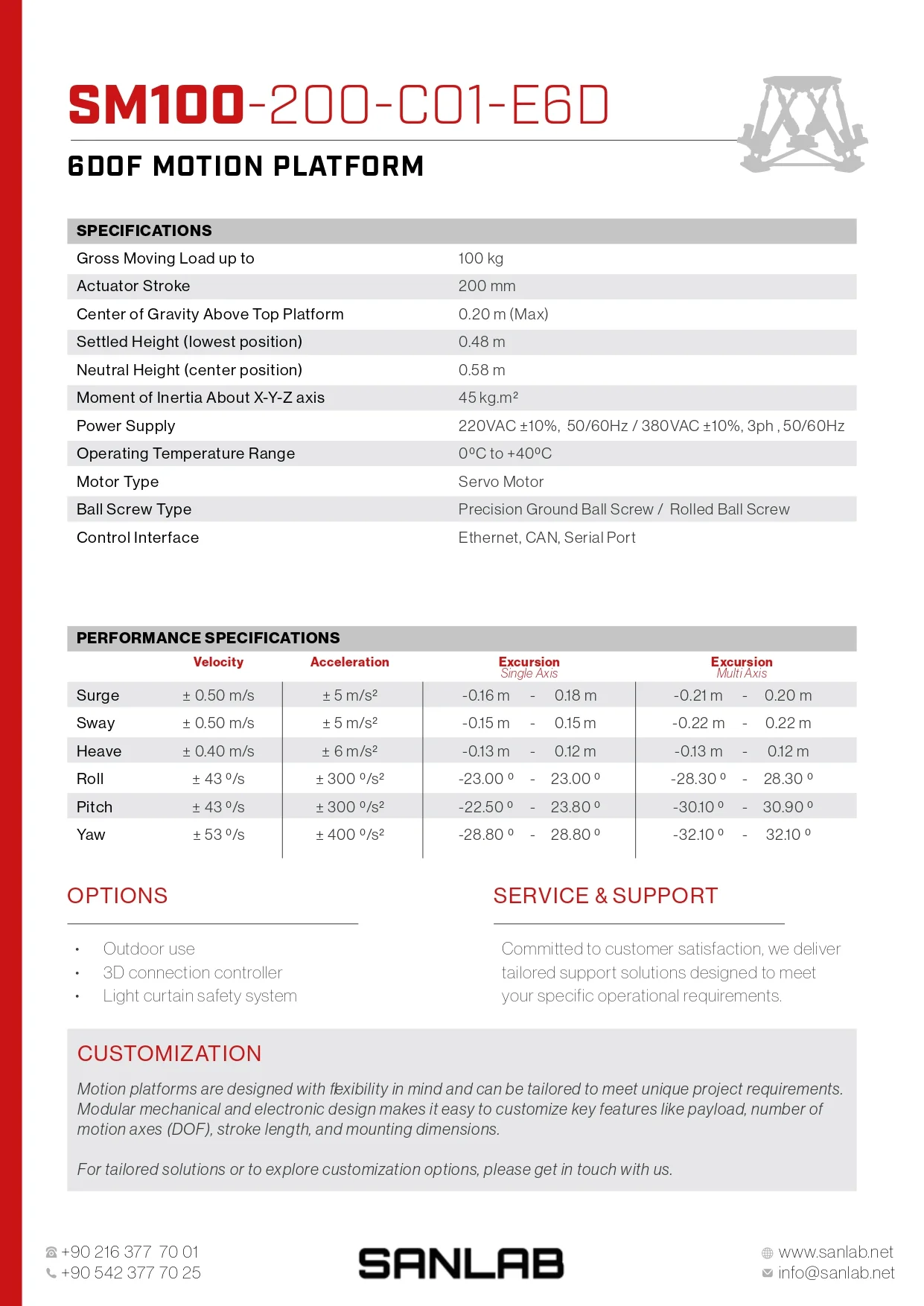

SM100-200-C01-E6D
MOTION PLATFORM
SMotion100 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts an impressive payload capacity of 100 kilograms, making it a versatile solution for a range of industries.
- Dimensions: Length 108 cm x Width 96 cm x Height 58 cm
- Payload Capacity: 100 kg
- Actuator Stroke:200 mm
- Moment of Inertia:45 kg.m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz

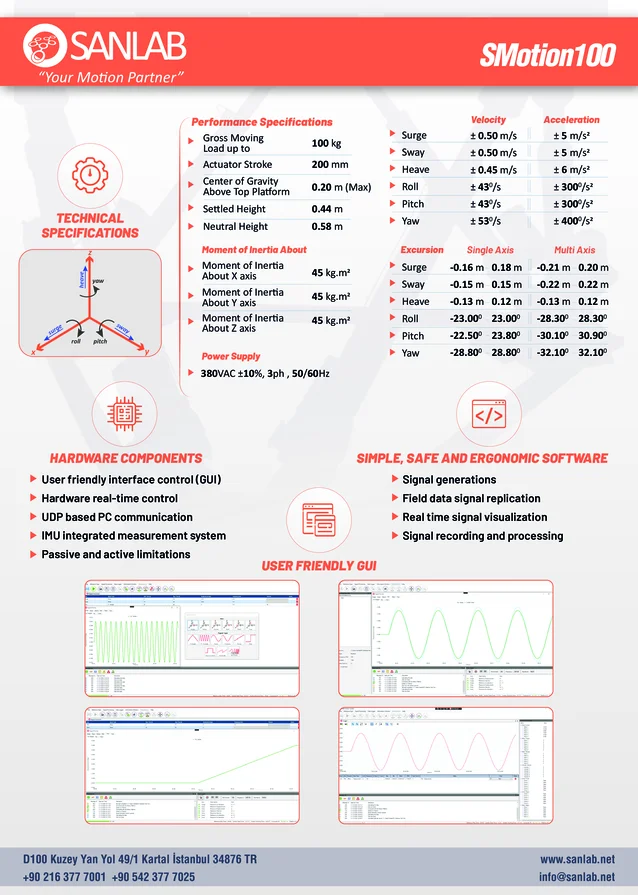

Performance Specifications
Velocity |
Acceleration |
Excursion (Single Axis) |
Excursion (Multi Axis) | |
|---|---|---|---|---|
Surge
|
± 0.50 m/s
|
± 5 m/s2
|
-0.16m | 0.18m
|
-0.21m | 0.20m
|
Sway
|
± 0.50 m/s
|
± 5 m/s2
|
-0.15m | 0.15m
|
-0.22m | 0.22m
|
Heave
|
± 0.40 m/s
|
± 6 m/s2
|
-0.13m | 0.12m
|
-0.13m | 0.12m
|
Roll
|
43°/s
|
± 300°/s²
|
-23.00° | 23.00°
|
-28.30° | 28.30°
|
Pitch
|
43°/s
|
± 300°/s²
|
-22.50° | 23.80°
|
-30.10° | 30.90°
|
Yaw
|
53°/s
|
± 400°/s²
|
-28.80° | 28.80°
|
-32.10° | 32.10°
|
Compatible With
Optic Systems
Antenna Systems
Radar Systems
Camera Tracking Systems
Gimbal Systems
Rotator Systems
Facts
6DOF (degrees of freedom)
6 Electro-Mechanical Actuators
100 kg total payloads
200 mm actuator stroke
Applications
Camera Tracking Systems Testing
Signal replication
Signal generation
Real time simulation table
Field data system testing simulator
FORM & FUNCTION
SMotion100 delivers 6DOF motion performance in a lightweight, modular structure, optimized for setups that demand flexibility, precision, and easy integration. Its balanced design ensures smooth operation in mobile rigs, lab environments, or compact simulators.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP Based PC Communication
Ensures efficient data transmission.
SM100-200-C01-E6D
OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion100 Outdoor variant, which includes all the features of the standard SMotion100 with additional protection and durability for harsh environments.
- IP Class: 66 (Water and Dust resistant)
- Operating Temperature Range: -30°C to +60°C
- Storage Temperature Range: -20°C to +50°C
- Same Performance Specifications: Retains all the performance features of the standard SMotion100, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
