SMOTION50-E6D
(Outdoor Option)
SMotion50 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform specifically designed for outdoor applications, providing precise movement and control for various high-tech uses. With a payload capacity of 50 kilograms, it is engineered to meet the demands of rigorous and diverse environments.
SM50
MOTION PLATFORM
SMotion50 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts a payload capacity of 50 kilograms, making it a versatile solution for a range of industries.
Dimensions: Length 1070 cm x Width 950 cm x Height 690 cm
Payload Capacity: 50 kg
Actuator Stroke: 200 mm
Moment of Inertia: 23 kg·m² (X, Y, Z axes)
Power Supply: 380VAC ±10%, 3ph, 50/60Hz
COMPATIBLE WITH
• Optic Systems
• Antenna Systems
• Radar Systems
• Camera Tracking Systems
• Gimbal Systems
• Rotator Systems
FACTS
• 6DOF (degrees of freedom)
• 6 Electro-Mechanical Actuators
• 50 kg total payloads
• 200 mm actuator stroke
Applications
• Component validation
• Signal replication
• Signal generation
• Real time simulation table
• Field data system testing simulator
Performance Specifications
• Surge, Sway, Heave: ± 0.50 m/s
• Roll, Pitch, Yaw: ± 500°/s
• Acceleration:
▪️ Surge, Sway: ± 5 m/s²
▪️ Heave: ± 6 m/s²
▪️ Roll: ± 400°/s²
▪️ Pitch: ± 400°/s
▪️ Yaw: ± 500°/s²
Key Features
• 6 Degrees of Freedom: Allows for complex, multi-directional movement.
• 6 Electro-Mechanical Actuators: Ensures precise and reliable operation.
• User-Friendly GUI: Simplifies control with an intuitive graphical user interface.
• Real-Time Control: Facilitates immediate response and adjustment.
• IMU Integrated Measurement System: Provides accurate motion tracking and feedback.
• UDP Based PC Communication: Ensures efficient data transmission.
Learn More

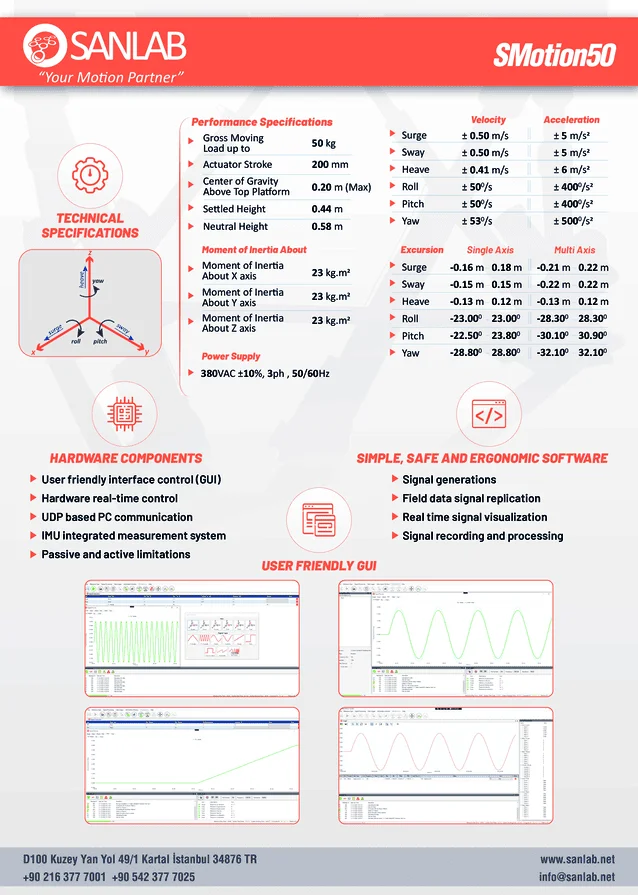

Download Product Catalogue
SM50
OUTDOOR MOTION PLATFORM
For outdoor applications, we offer the SMotion50 Outdoor variant, which includes all the features of the standard SMotion50 with additional protection and durability for harsh environments.
• IP Class: 66 (Water and Dust resistant)
• Operating Temperature Range: -30°C to +60°C
• Storage Temperature Range: -20°C to +50°C
• Same Performance Specifications: Retains all the performance features of the standard SMotion50, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
Learn More
Download Product Catalogue
