SMOTION4000-E6D

SMotion4000 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts an impressive payload capacity of 4000 kilograms, making it a versatile solution for a range of industries.

SM4000
MOTION PLATFORM

SMotion4000 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts a payload capacity of 4000 kilograms, making it a versatile solution for a range of industries.

Dimensions: Length 2900 cm x Width 3000 cm x Height 2100 cm

Payload Capacity: 4.000 kg

Actuator Stroke: 600 mm

Moment of Inertia: 5650 kg·m² (X, Y, Z axes)

Power Supply: 380VAC ±10%, 3ph, 50/60Hz

COMPATIBLE WITH

• Remote Control Weapon Systems
• Camera Tracking Systems
• Gimbal Systems
• Radar Systems
• Rotator Systems
• Turret Systems
• Vehicle Cabin/Body Systems
• Aircraft Cabin Systems

FACTS

• 6DOF (degrees of freedom)
• 6 Electro-Mechanical Actuators
• 4000 kg total payloads
• 600 mm actuator stroke


Applications

• Turret & RCW Test
• Component Validation
• Signal Replication
• Signal Generation
• Real-Time Simulation Table
• Field Data System Testing Simulator


Performance Specifications

• Acceleration:
    ▪️ Surge, Sway: ±7 m/s²
    ▪️ Heave: ± 7 m/s²
    ▪️ Roll: ± 200°/s²
    ▪️ Pitch: ± 200°/s
    ▪️ Yaw: ± 300°/s²

Key Features

• 6 Degrees of Freedom: Allows for complex, multi-directional movement.
• 6 Electro-Mechanical Actuators: Ensures precise and reliable operation.
• User-Friendly GUI: Simplifies control with an intuitive graphical user interface.
• Real-Time Control: Facilitates immediate response and adjustment.
• IMU Integrated Measurement System: Provides accurate motion tracking and feedback.
• UDP Based PC Communication: Ensures efficient data transmission.

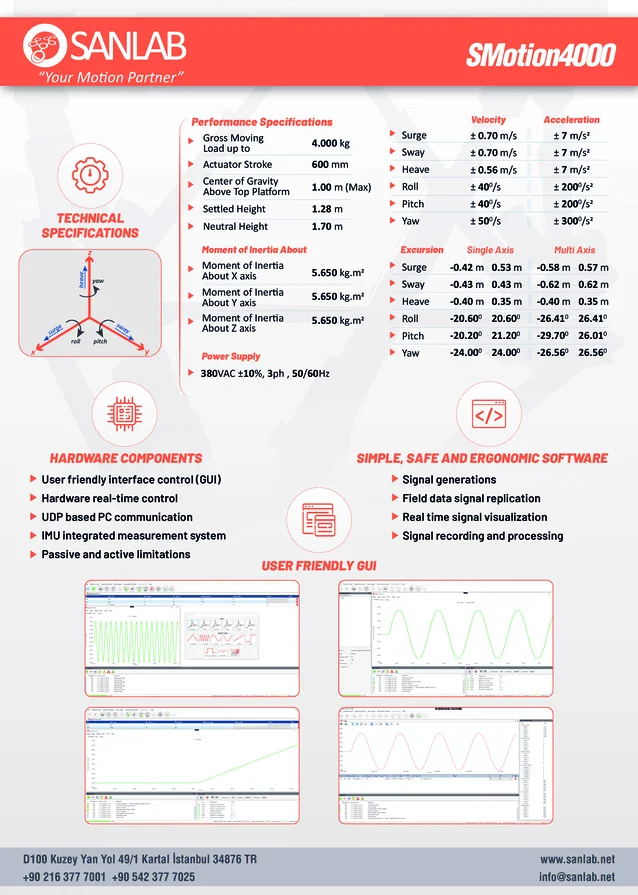

Catalogue SM4000
