SM200
MOTION PLATFORM
SMotion200 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts an impressive payload capacity of 200 kilograms, making it a versatile solution for a range of industries.
Dimensions: Length 1100 cm x Width 1000 cm x Height 700 cm
Payload Capacity: 200 kg
Actuator Stroke: 200 mm
Moment of Inertia: 92 kg·m² (X, Y, Z axes)
Power Supply: 380VAC ±10%, 3ph, 50/60Hz
COMPATIBLE WITH
• Camera Tracking Systems
• Optic Systems
• Antenna Systems
• Radar Systems
• Gimbal Systems
• Rotator Systems
FACTS
• 6DOF (degrees of freedom)
• 6 Electro-Mechanical Actuators
• 100 kg total payloads
• 200 mm actuator stroke
Applications
• Component Validation
• Signal Replication
• Signal Generation
• Real-Time Simulation Table
• Field Data System Testing Simulator
Performance Specifications
• Acceleration:
▪️ Surge, Sway: ±5 m/s²
▪️ Heave: ± 6 m/s²
▪️ Roll: ± 400°/s²
▪️ Pitch: ± 400°/s
▪️ Yaw: ± 500°/s²
Key Features
• 6 Degrees of Freedom: Allows for complex, multi-directional movement.
• 6 Electro-Mechanical Actuators: Ensures precise and reliable operation.
• User-Friendly GUI: Simplifies control with an intuitive graphical user interface.
• Real-Time Control: Facilitates immediate response and adjustment.
• IMU Integrated Measurement System: Provides accurate motion tracking and feedback.
• UDP Based PC Communication: Ensures efficient data transmission.
Learn More

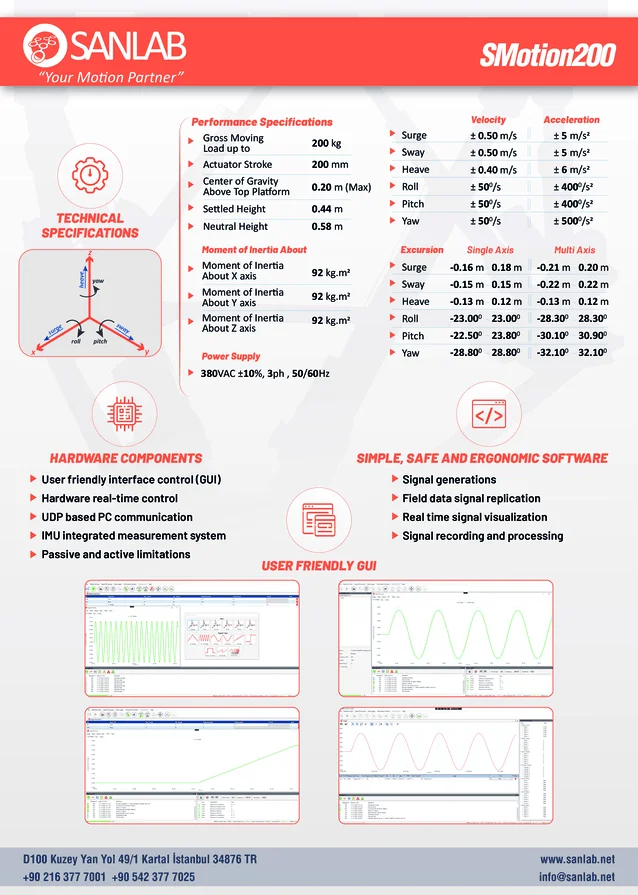

Download Product Catalogue
